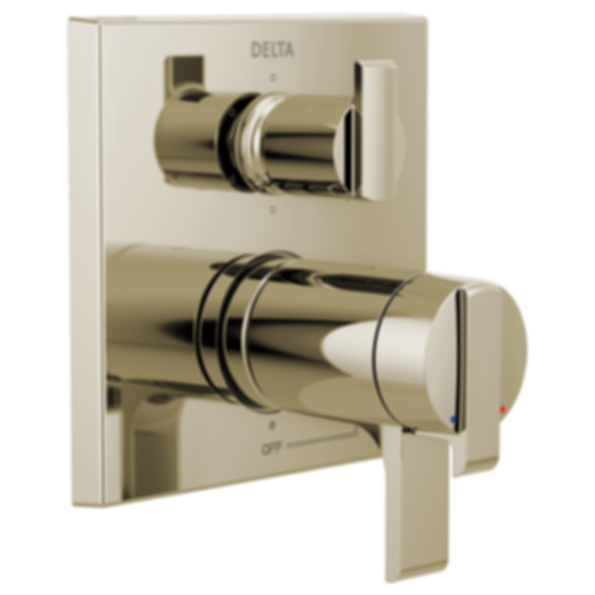

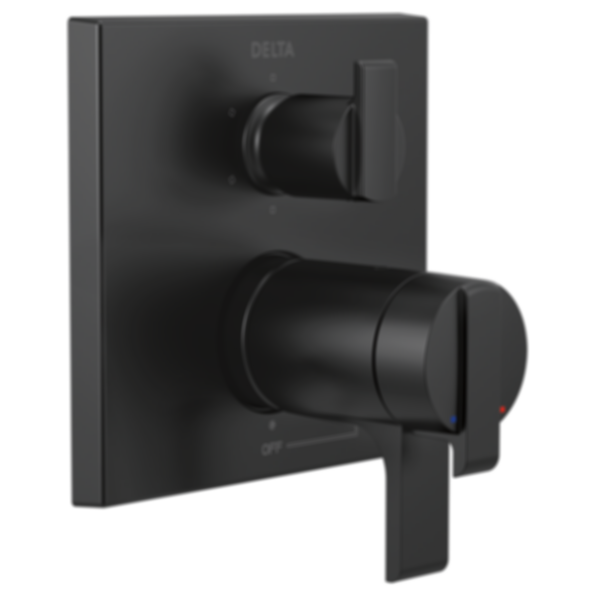

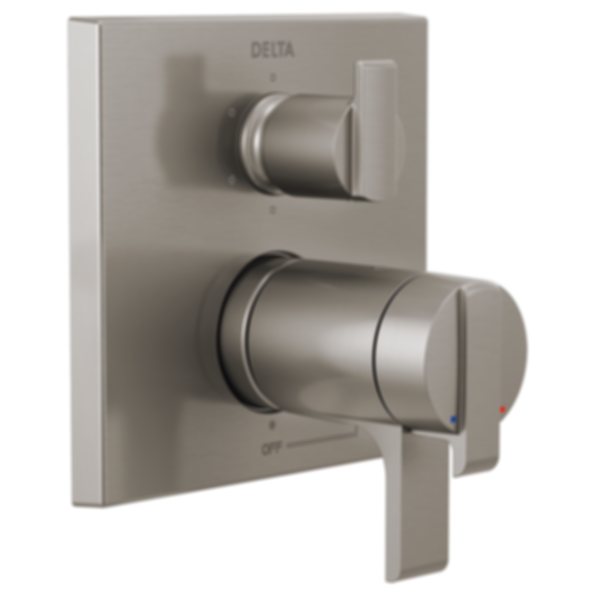

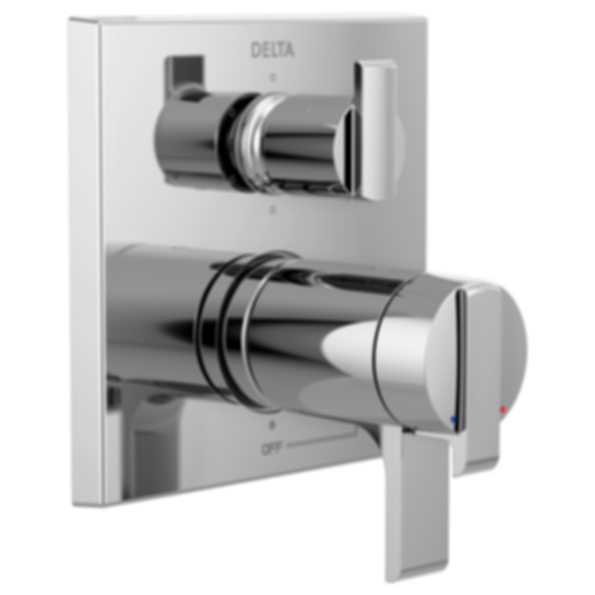

ARA Angular Modern TempAssure 17T Series Valve Trim With 6-Setting Integrated Diverter - T27T967
Brand :
Category :
Product URL :
Download Files
Features:
• Main control utilizes Thermostatic Valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6˚F
• For use with MultiChoice® Universal integrated shower diverter rough valve body (R22000 Series)
• Maximum system flow rate 7.2 gpm @ 60 psi with R22000
• Top handle controls diverter functions
• Bottom handles (2) control on/off and temperature
• Field adjustable to limit bottom handle rotation into hot water zone
• Bottom handle 90° Maximum rotation
• Red/blue indicator markings
• Three function diverter for 2 individual positions, 1 shared position
• For two individual functions, no shared functions, order additional RP71717
• Six function diverter for 3 individual positions, 3 shared positions
• For three individual functions, no shared functions, order additional RP71718
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 1-1/8" finished wall thickness
• Thick wall installation kit RP90544 can be ordered to allow for up to 2-1/8" finished wall thickness
• Main control utilizes Thermostatic Valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6˚F
• For use with MultiChoice® Universal integrated shower diverter rough valve body (R22000 Series)
• Maximum system flow rate 7.2 gpm @ 60 psi with R22000
• Top handle controls diverter functions
• Bottom handles (2) control on/off and temperature
• Field adjustable to limit bottom handle rotation into hot water zone
• Bottom handle 90° Maximum rotation
• Red/blue indicator markings
• Three function diverter for 2 individual positions, 1 shared position
• For two individual functions, no shared functions, order additional RP71717
• Six function diverter for 3 individual positions, 3 shared positions
• For three individual functions, no shared functions, order additional RP71718
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 1-1/8" finished wall thickness
• Thick wall installation kit RP90544 can be ordered to allow for up to 2-1/8" finished wall thickness
