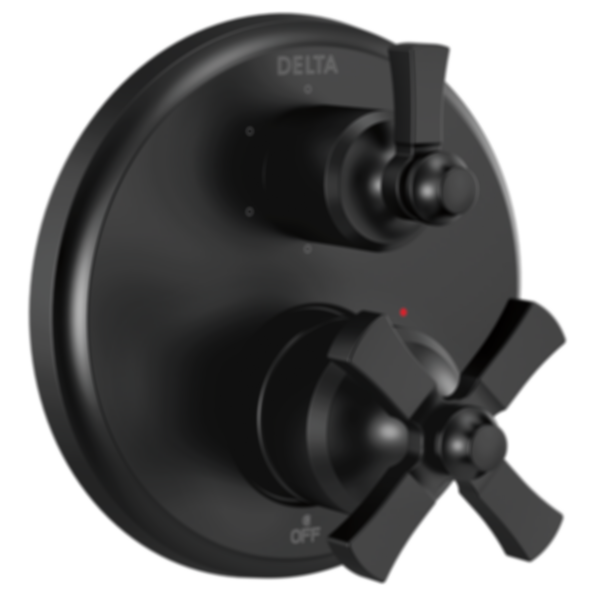

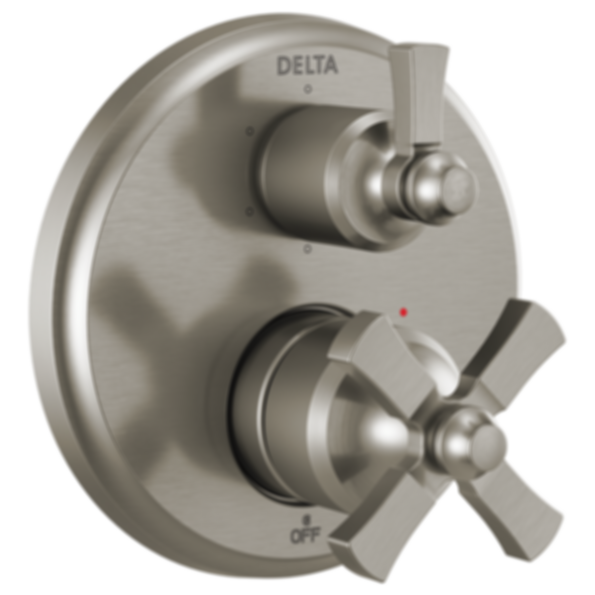

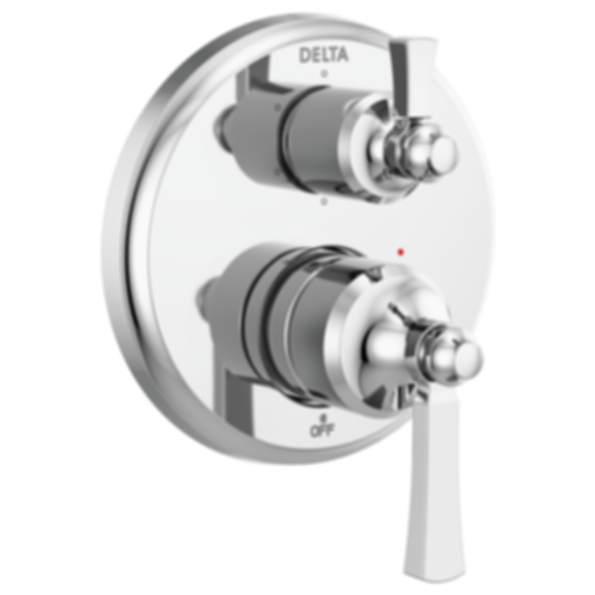

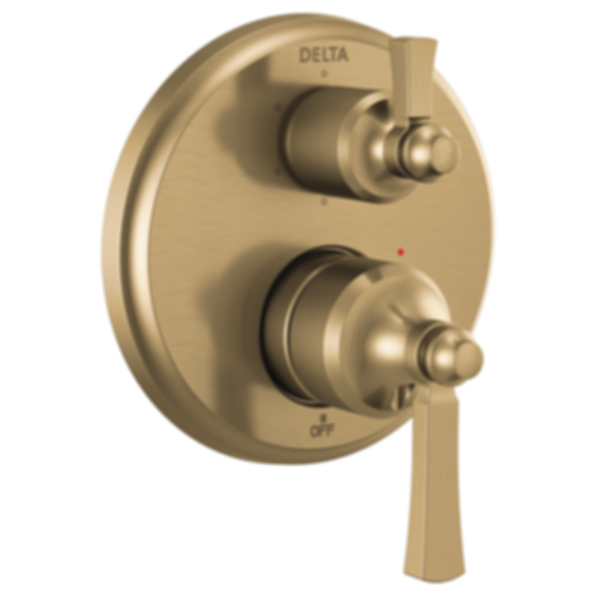

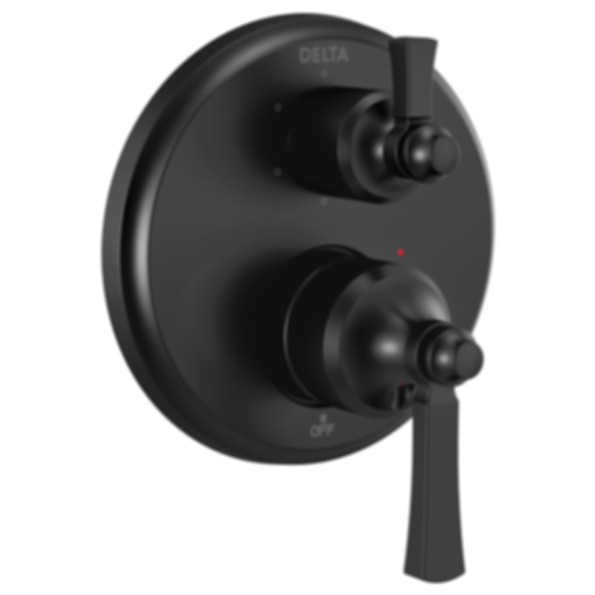

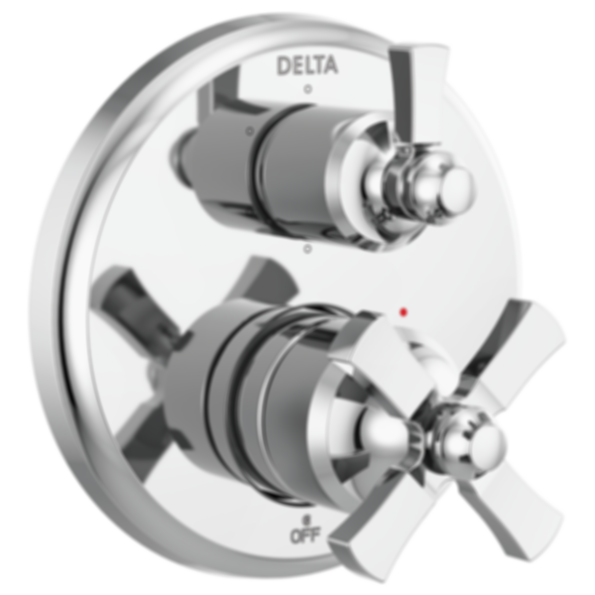

DORVAL Traditional 2-Handle Monitor 14 Series Valve Trim With 6 Setting Diverter - T24956-LHP
Brand :
Category :
Product URL :
Download Files
Features:
• Main control utilizes single-function pressure balanced cartridge.
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice® Universal rough valve body. (R22000 Series)
• Top handle controls diverter functions.
• Bottom handle controls on/off and temperature.
• Field adjustable to limit handle rotation into hot water zone.
• Bottom handle 120° Maximum rotation.
• Red/Blue indicator markings.
• Three function diverter for 2 individual positions, 1 shared position.
• For two individual functions, no shared functions, order additional RP71717.
• Six function diverter for 3 individual positions, 3 shared positions.
• For three individual functions, no shared functions, order additional RP71718.
• Cartridges included.
• Standard installation allows up to 11/8" finished wall thickness.
• Thick wall installation kit (RP90542) can be ordered to allow for up to 2 1/8" finished wall thickness.
• Maximum system flow rate 5.0 gpm at 60 psi with R22000
• Main control utilizes single-function pressure balanced cartridge.
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system.
• For use with MultiChoice® Universal rough valve body. (R22000 Series)
• Top handle controls diverter functions.
• Bottom handle controls on/off and temperature.
• Field adjustable to limit handle rotation into hot water zone.
• Bottom handle 120° Maximum rotation.
• Red/Blue indicator markings.
• Three function diverter for 2 individual positions, 1 shared position.
• For two individual functions, no shared functions, order additional RP71717.
• Six function diverter for 3 individual positions, 3 shared positions.
• For three individual functions, no shared functions, order additional RP71718.
• Cartridges included.
• Standard installation allows up to 11/8" finished wall thickness.
• Thick wall installation kit (RP90542) can be ordered to allow for up to 2 1/8" finished wall thickness.
• Maximum system flow rate 5.0 gpm at 60 psi with R22000
