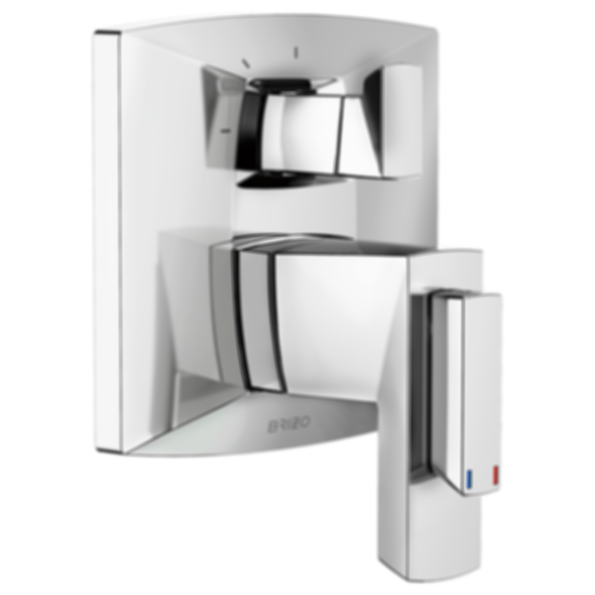

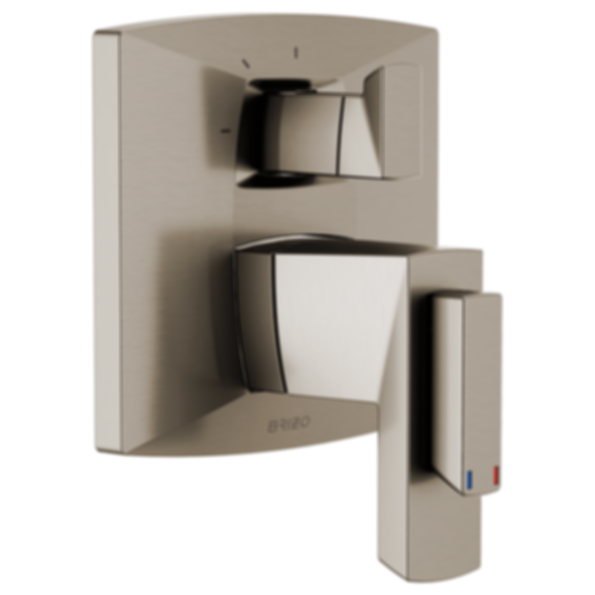

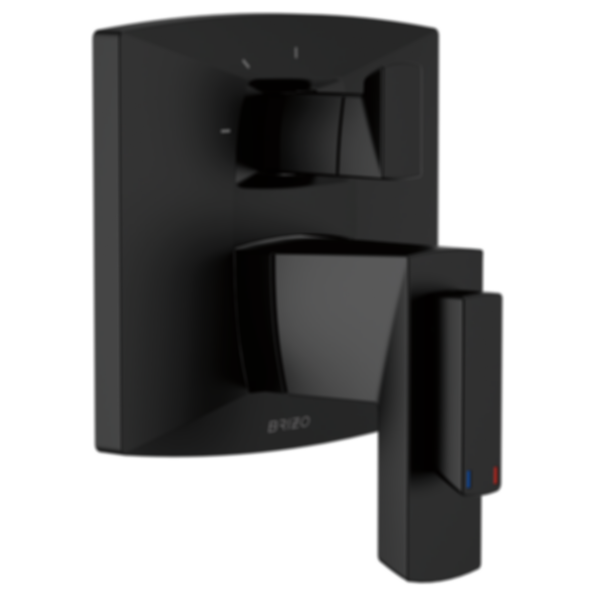

VETTIS® Tempassure® Thermostatic Valve With Integrated 3-Function Diverter Trim - T75588-PC
Download Files
Features:
• Main control utilizes TempAssure® Thermostatic valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6˚F
• For use with MultiChoice® Universal integrated shower diverter rough valve body (R75000 Series)
• Back-to-back installation capability
• Top handle controls diverter functions
• Bottom (2) handles control volume and temperature
• Field adjustable to limit temperature handle rotation into hot water zone
• Bottom volume handle 90° Maximum rotation
• Red/blue temperature indication on handle
• Three function diverter has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 1-1/8" finished wall thickness
• Optional extension kits RP91022 and RP92548 can accomodate up to 1" of additional wall thickness. Both RP kits required.
• Main control utilizes TempAssure® Thermostatic valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6˚F
• For use with MultiChoice® Universal integrated shower diverter rough valve body (R75000 Series)
• Back-to-back installation capability
• Top handle controls diverter functions
• Bottom (2) handles control volume and temperature
• Field adjustable to limit temperature handle rotation into hot water zone
• Bottom volume handle 90° Maximum rotation
• Red/blue temperature indication on handle
• Three function diverter has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 1-1/8" finished wall thickness
• Optional extension kits RP91022 and RP92548 can accomodate up to 1" of additional wall thickness. Both RP kits required.
