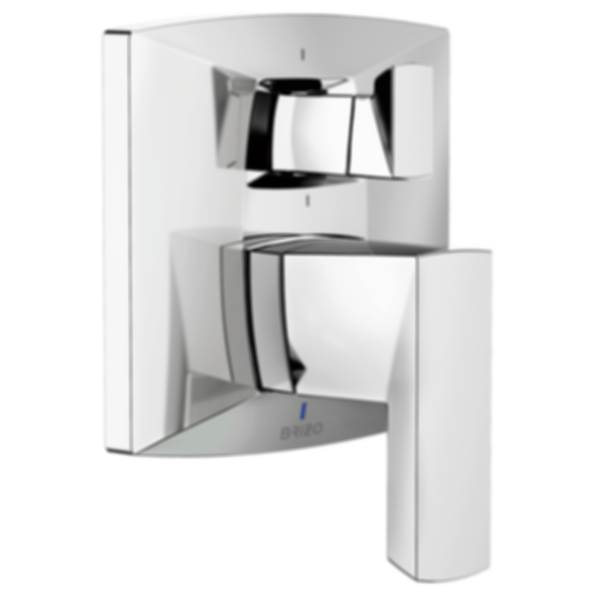

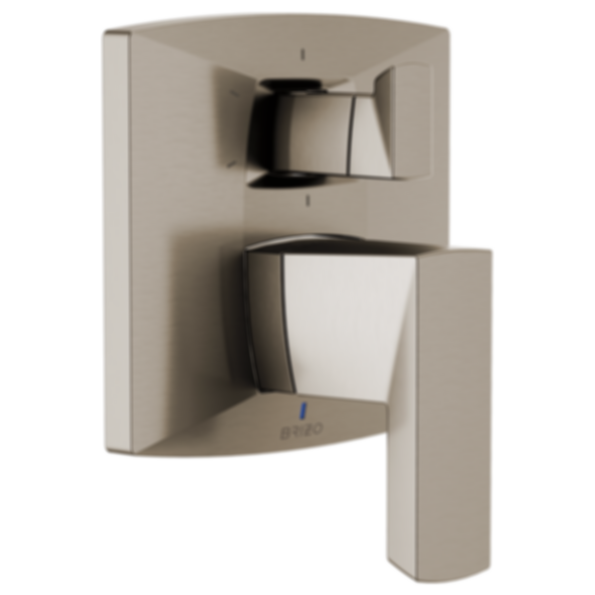

VETTIS® Pressure Balance Valve With Integrated 6-Function Diverter Trim - T75P688-PC
Brand :
Category :
Product URL :
Download Files
Features:
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal integrated shower diverter rough valve body (R75000 Series)
• Max. system flow rate 5.0 gpm at 60 psi with R75000
• Back-to-back installation capability
• Top handle controls diverter functions
• Bottom handle controls on/off and temperature
• Field adjustable to limit bottom handle rotation into hot water zone
• Bottom handle 120° Maximum rotation
• Red/Blue temperature markings
• Three function diverter (T75P588) has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter (T75P688) has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 1-1/8" finished wall thickness
• For thick wall installations, RP91024 AND RP92548 can be ordered to allow for up to 2-1/8" finished wall thickness RP91024 Valve Trim Extension Kit Both RP kits required.
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal integrated shower diverter rough valve body (R75000 Series)
• Max. system flow rate 5.0 gpm at 60 psi with R75000
• Back-to-back installation capability
• Top handle controls diverter functions
• Bottom handle controls on/off and temperature
• Field adjustable to limit bottom handle rotation into hot water zone
• Bottom handle 120° Maximum rotation
• Red/Blue temperature markings
• Three function diverter (T75P588) has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter (T75P688) has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 1-1/8" finished wall thickness
• For thick wall installations, RP91024 AND RP92548 can be ordered to allow for up to 2-1/8" finished wall thickness RP91024 Valve Trim Extension Kit Both RP kits required.
