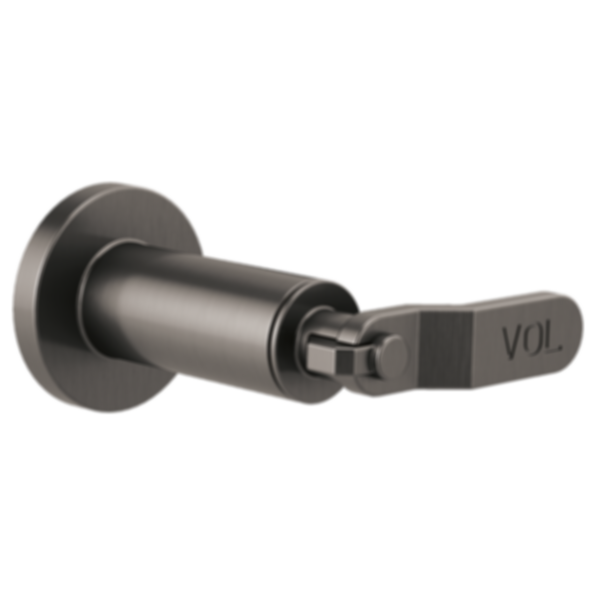

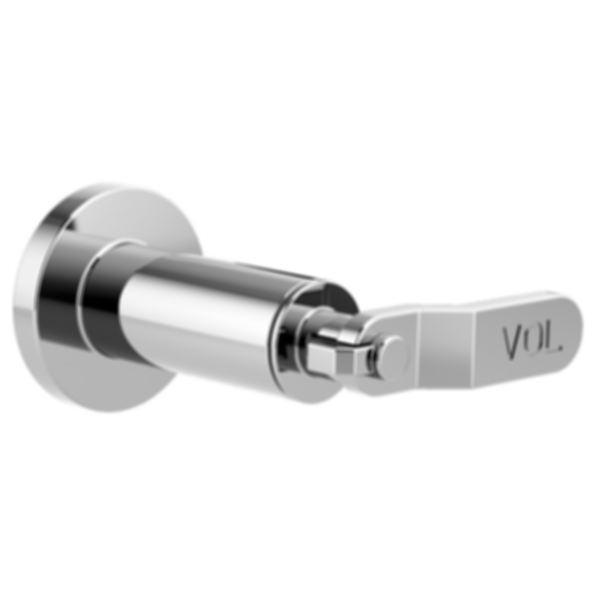

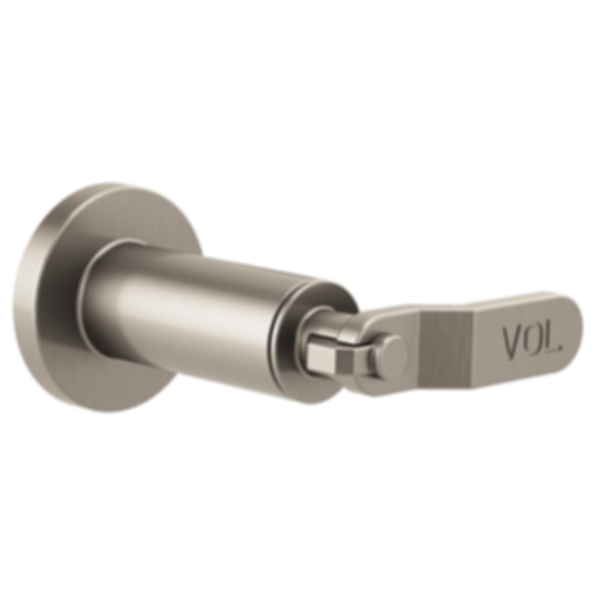

LITZE® Sensori® Volume Control Trim - Industrial Lever - T66634-PC
Download Files
Features:
• Must also order R35600 Rough-In
• 90˚ handle rotation controls volume only
• Volume control flows up to 16.2 gpm @ 60 psi
• Maximum flow 8.2 gpm @ 60 psi per volume control when paired with Sensori Thermostatic trim.
• Volume controls are required for every outlet and every set of body sprays (up to max flow)
• All parts are replaceable from the front
• Adjusts for wall thickness variations
• Recommended working pressure of 45-80 PSI
• Volume control only; must be used with temperature control device
• Rough can accommodate up to 3 1/4" wall thickness.
NOTE: some applications may require stem extender RP100304.
• Must also order R35600 Rough-In
• 90˚ handle rotation controls volume only
• Volume control flows up to 16.2 gpm @ 60 psi
• Maximum flow 8.2 gpm @ 60 psi per volume control when paired with Sensori Thermostatic trim.
• Volume controls are required for every outlet and every set of body sprays (up to max flow)
• All parts are replaceable from the front
• Adjusts for wall thickness variations
• Recommended working pressure of 45-80 PSI
• Volume control only; must be used with temperature control device
• Rough can accommodate up to 3 1/4" wall thickness.
NOTE: some applications may require stem extender RP100304.
