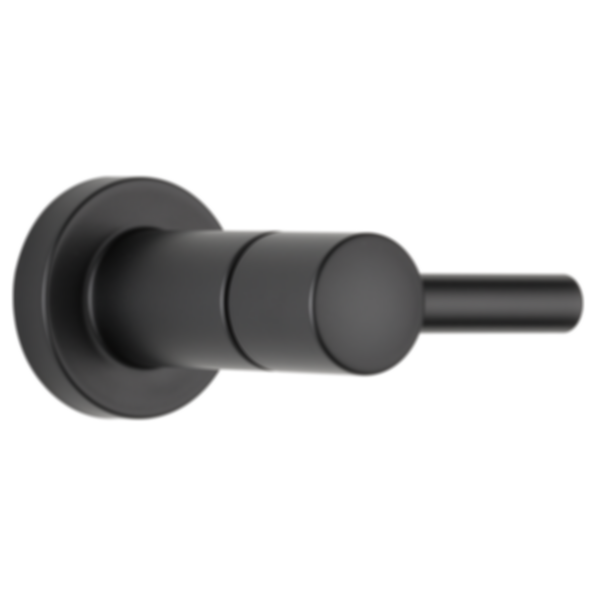

JASON WU FOR BRIZO™ Sensori® Volume Control with Lever Handle - T66675-BL
Download Files
Features:
• Must also order R35600 Rough-In.
• 90˚ handle rotation controls volume only.
• Volume control flows up to 16.2 gpm @ 60 psi
• Maximum flow 8.2 gpm @ 60 psi per volume control when paired with Sensori Thermostatic trim.
• Volume controls are required for every outlet and every set of body sprays (up to max flow).
• All parts are replaceable from the front.
• Adjusts for wall thickness variations.
• Recommended working pressure of 45-80 PSI.
• Volume control only; must be used with temperature control device.
• No extension kit required, rough accomodates up to 3 1/4" wall thickness.
• Must also order R35600 Rough-In.
• 90˚ handle rotation controls volume only.
• Volume control flows up to 16.2 gpm @ 60 psi
• Maximum flow 8.2 gpm @ 60 psi per volume control when paired with Sensori Thermostatic trim.
• Volume controls are required for every outlet and every set of body sprays (up to max flow).
• All parts are replaceable from the front.
• Adjusts for wall thickness variations.
• Recommended working pressure of 45-80 PSI.
• Volume control only; must be used with temperature control device.
• No extension kit required, rough accomodates up to 3 1/4" wall thickness.
