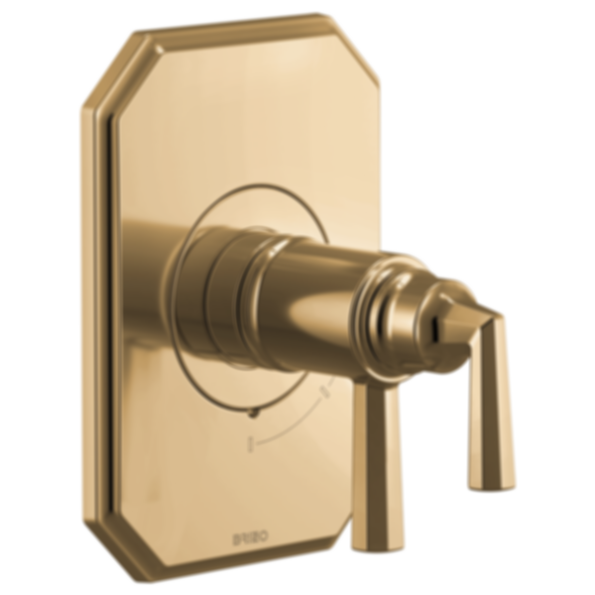

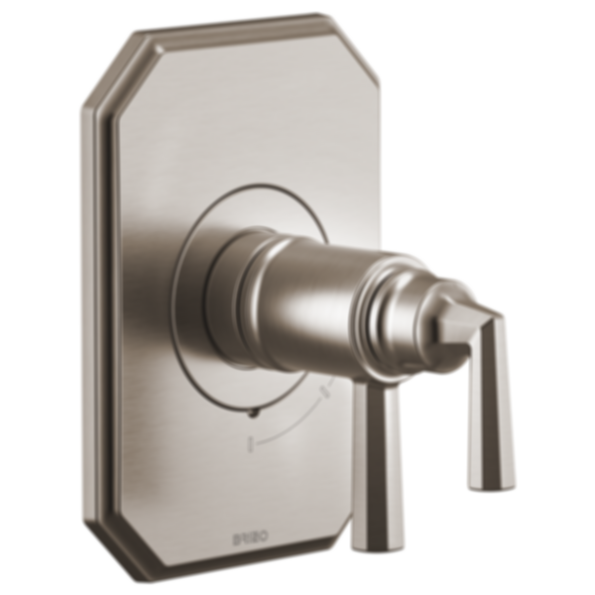

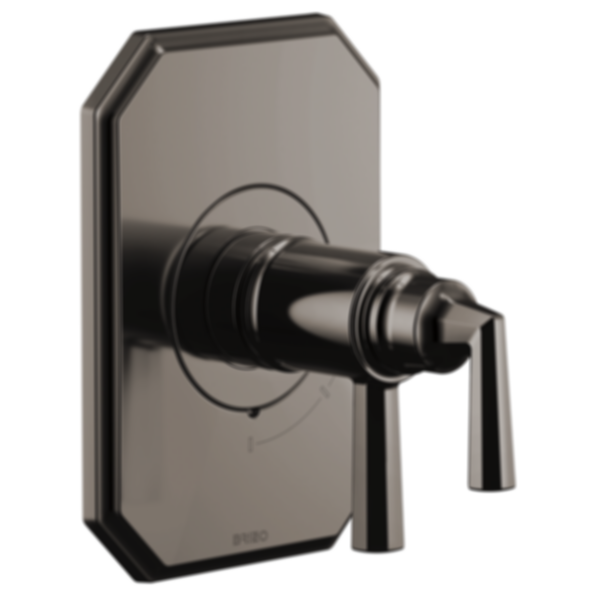

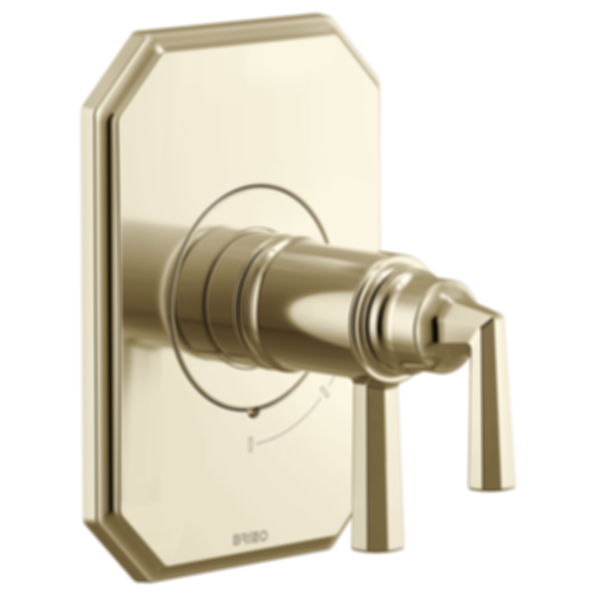

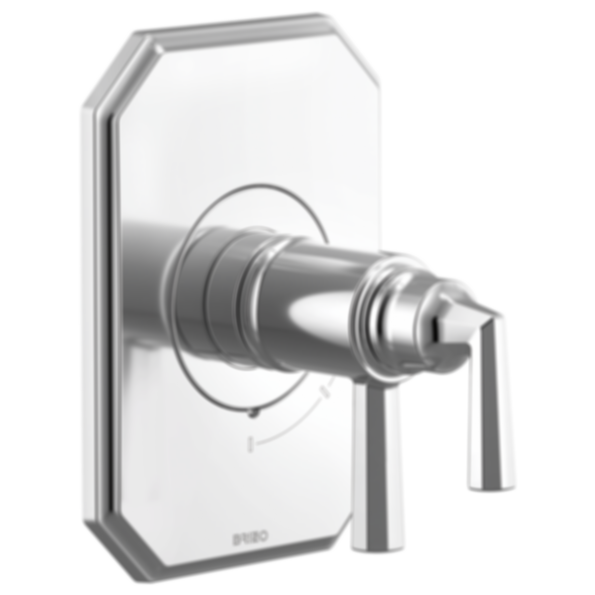

BEAUCLERE™ Beauclere™ TempAssure Thermostatic Valve Only Trim - T60065
Download Files
Features:
• Max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• 4-spray settings: H2Okinetic® Rinsing Spray, Full Spray, massage Spray and Pause. Pause is a non-positive shut-off
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R60000-UNBX
• TempAssure® 60 series thermostatic valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6˚F
• Must also order MultiChoice® Universal rough valve body (R60000 Series)
• Back-to-back installation capability
• Lever volume control handle; temperature adjustment dial
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit handle rotation into hot water zone
• All parts replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Max flow rate 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• 4-spray settings: H2Okinetic® Rinsing Spray, Full Spray, massage Spray and Pause. Pause is a non-positive shut-off
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R60000-UNBX
• TempAssure® 60 series thermostatic valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6˚F
• Must also order MultiChoice® Universal rough valve body (R60000 Series)
• Back-to-back installation capability
• Lever volume control handle; temperature adjustment dial
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit handle rotation into hot water zone
• All parts replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
