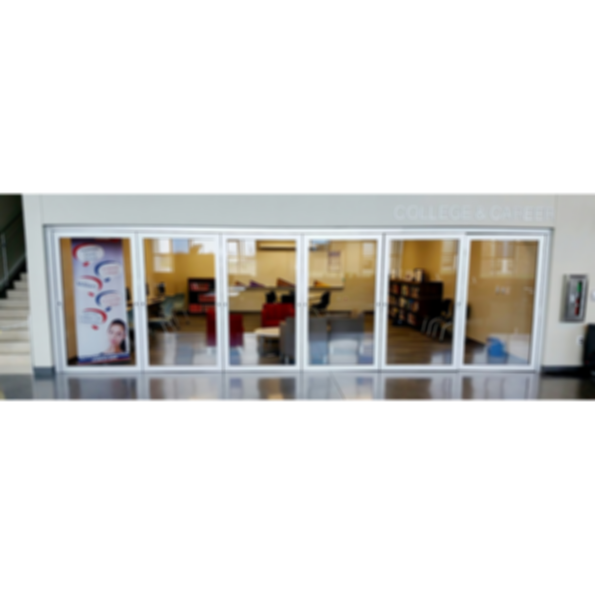

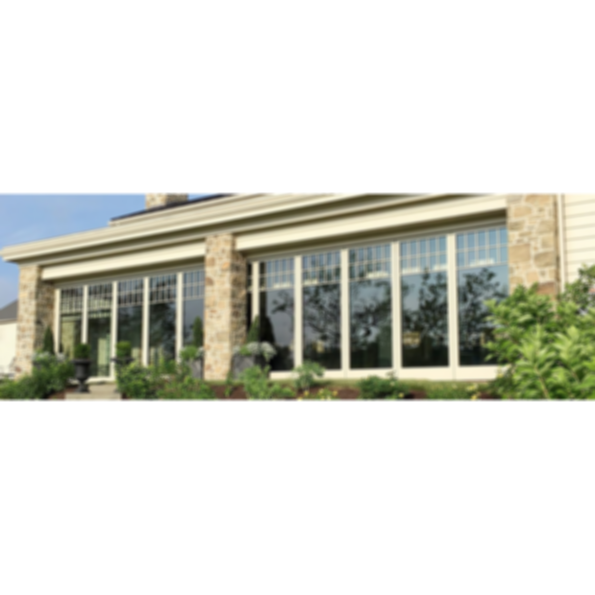

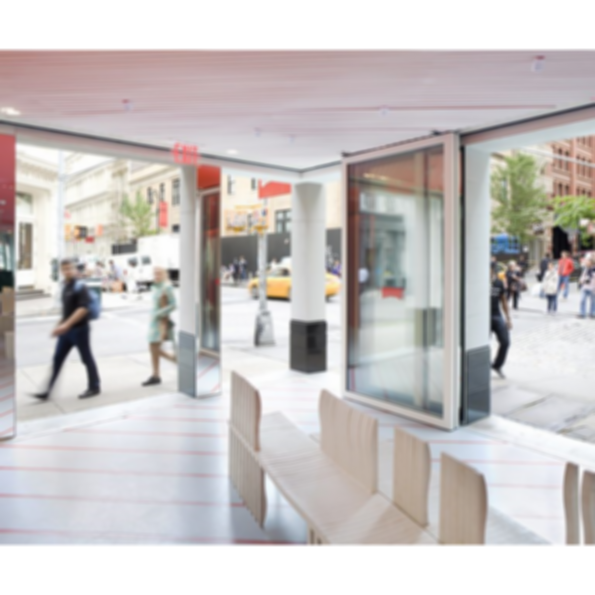

Stacking - Thermal

G2 Thermally-improved aluminum Slide and Stack Glass Wall Systems are a great way to open long spans between indoor and covered outdoor spaces. The frame utilizes a thermal break that limits temperature transfer between the interior and exterior aluminum surfaces. Due to limited air and water performance, it is not recommended that this system is directly exposed to the weather.

Frames are available in three frame widths: narrow, standard, and heavy. For a consistent look, the same frame widths can be used for both the horizontal and vertical frame members or, depending on the application, the frame members can vary between the horizontal and vertical frames. This flexibility allows multiple sightline and bottom rail configurations that can be retrofitted to match an existing opening or accommodate specific structural requirements.

G3 thermally-improved Slide & Stack Wall Systems are designed for commercial and residential applications that require higher design pressures. This system has been designed to support larger glass sizes while maintaining the ease of operation as our G2 System. The G3 System offers exceptional air, water, structural, acoustical, and thermal performance using a thermal strut system that separates the interior metal from the exterior metal. By including this thermal break, the temperature transfer between the outdoors and indoors is minimized.

Model: Series SI3000S

Finish: AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Primary Material: G2 Aluminum | G3 Aluminum

Hardware Included: Custom-manufactured operable hardware | Panic hardware and closer options available | Panel assemblies, including hardware and trolleys, designed to minimize and simplify maintenance | Multiple sill designs, including ADA compliant ramps | Factory installed sill drain tubes, if required

Performance: Structurally tested up to 40psf | Thermally enhanced utilizing thermal strut

Glazing: Monolithic or insulated glazing from 3/16" - 1 9/16"

Options: Wood veneer or metal cladding | Framed and cartridge retractable screen options | Manufacturer-installed sill drain tubes, if required | Mullions, decorative muntins, simulated divided lites (SDLs), interior and exterior grids

Panel Size: G2: Minimum panel size: 18" wide |  smaller panels may be available upon engineering approval | G2: Panel size up to 4' x 10' (or 40 sq. ft.) |  larger panel options may be available depending on application | G3: Minimum panel width: 24" |  smaller panels may be available based upon engineering | G3: Maximum panel size: 4' x 12' |  larger panel options may be available depending on application
