Stacking - Non Thermal

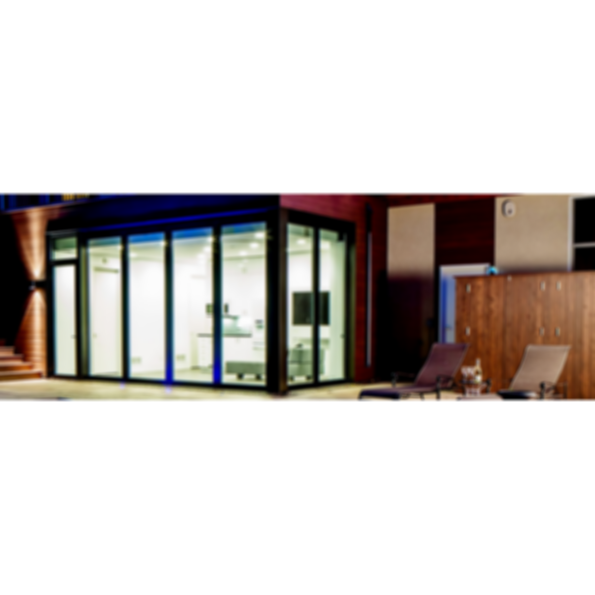

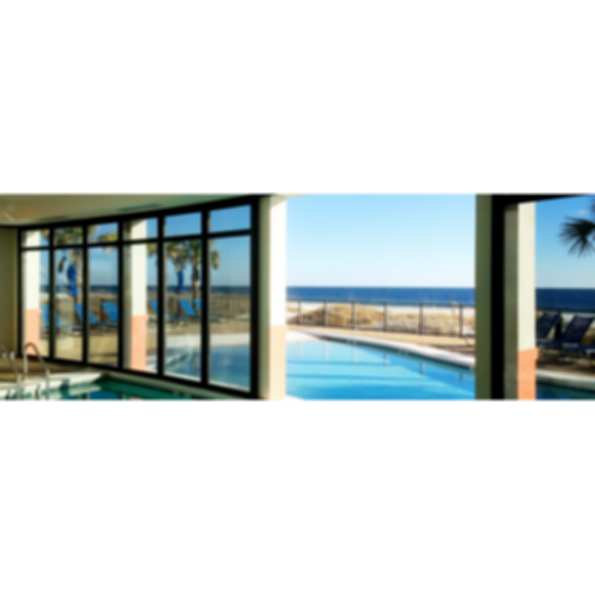

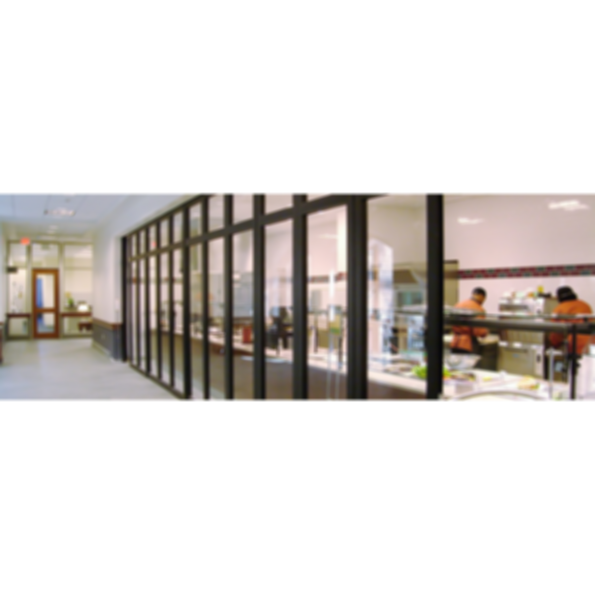

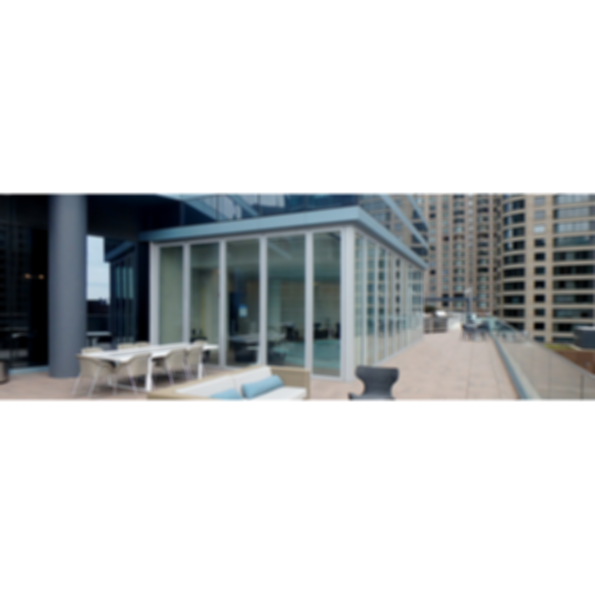

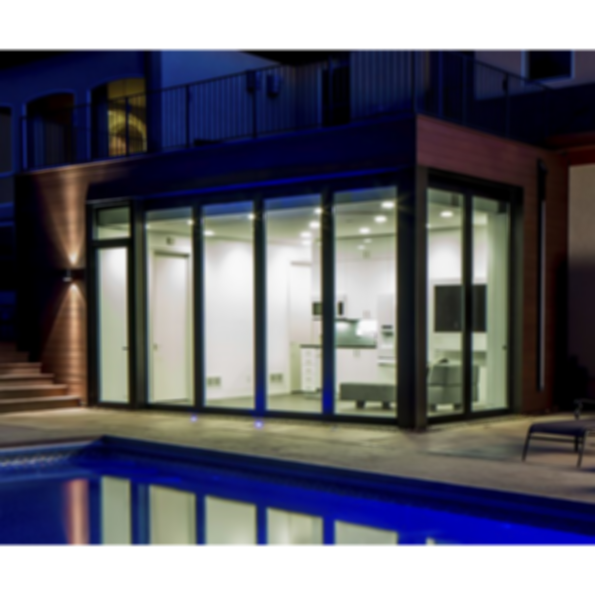

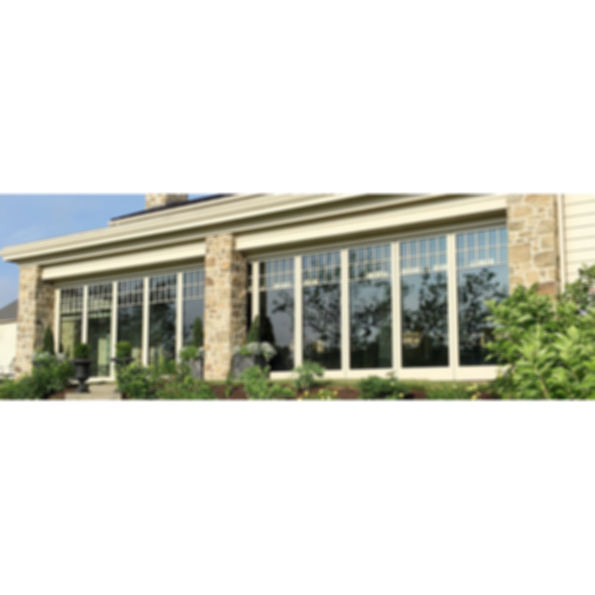

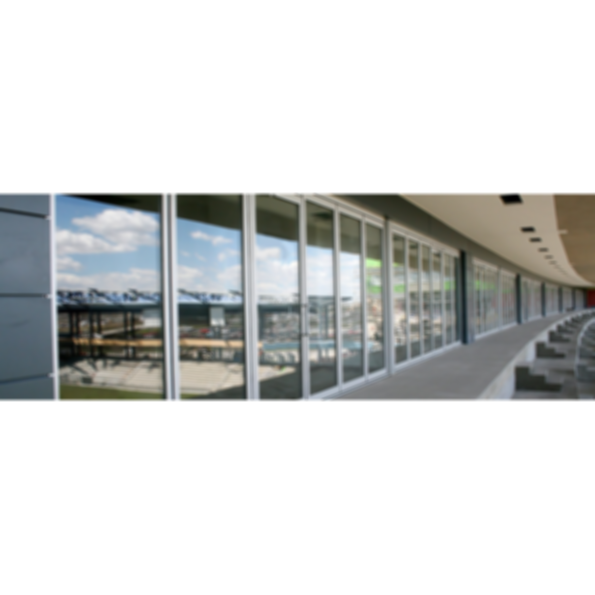

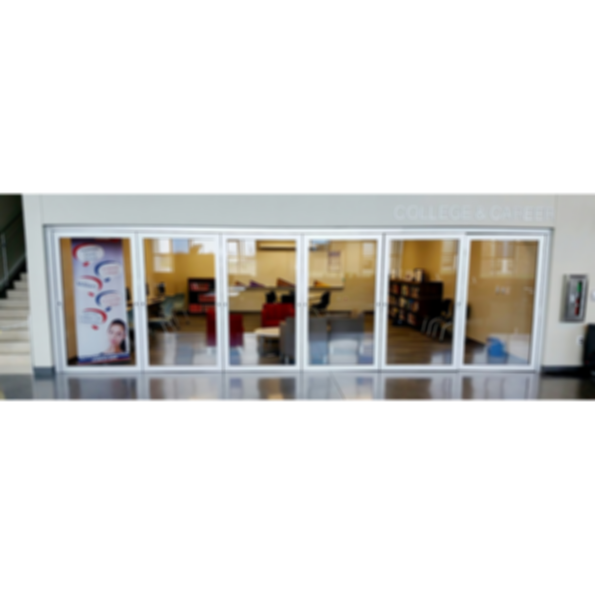

G2 Non-thermal Slide and Stack Glass Wall Systems do not include a thermal break and are ideal for mild climates and indoor uses. The frames are available in two frame widths: narrow and standard. Their flexibility make them the perfect solution for dividing large interior spaces into multiple smaller areas, while allowing natural light to pass from room to room.

The G3 nonthermal Slide & Stack Wall system is ideal for applications that do not require thermal performance, including mild climates and indoor uses — this system is popular for interior entryways and room dividers.

Model: Series SI3000S

Finish: AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Primary Material: G2 Aluminum | G3 Aluminum

Hardware Included: Custom-manufactured operable hardware | Panic hardware and closer options available | Panel assemblies, including hardware and trolleys, designed to minimize and simplify maintenance | Multiple sill designs, including ADA compliant ramps | Factory installed sill drain tubes, if required

Performance: Structurally tested up to 40psf | Thermally enhanced utilizing thermal strut

Glazing: Monolithic or insulated glazing from 3/16" - 1 9/16"

Options: Wood veneer or metal cladding | Framed and cartridge retractable screen options | Manufacturer-installed sill drain tubes, if required | Mullions, decorative muntins, simulated divided lites (SDLs), interior and exterior grids

Panel Size: G2: Minimum panel size: 18" wide |  smaller panels may be available upon engineering approval | G2: Panel size up to 4' x 10' (or 40 sq. ft.) |  larger panel options may be available depending on application | G3: Minimum panel width: 24" |  smaller panels may be available based upon engineering | G3: Maximum panel size: 4' x 12' |  larger panel options may be available depending on application
