Stacking

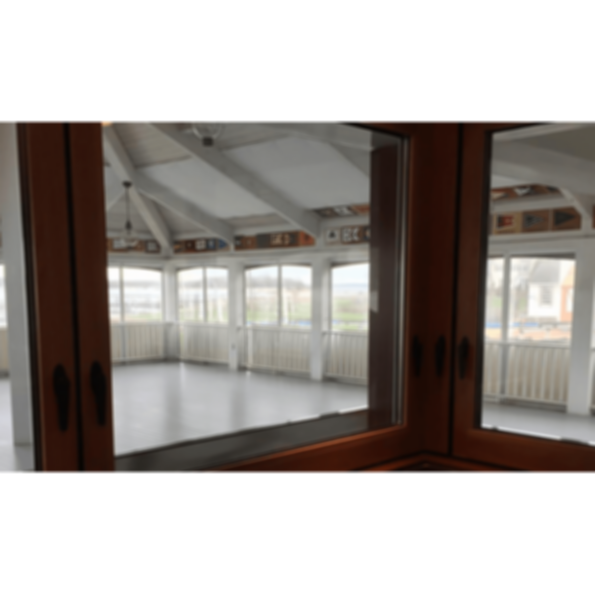

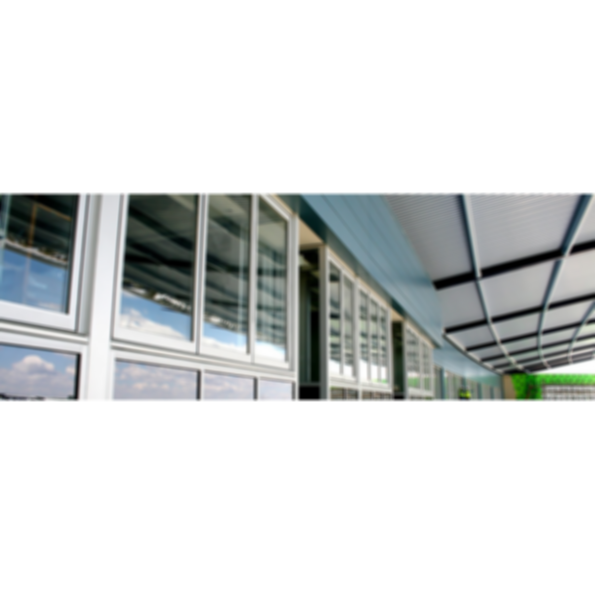

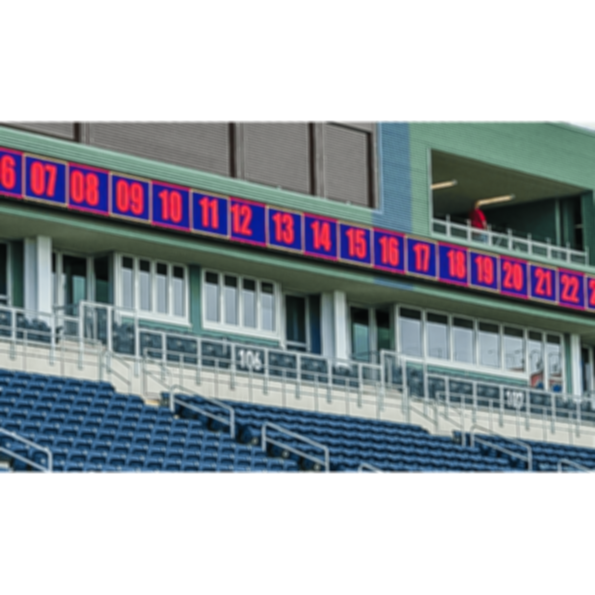

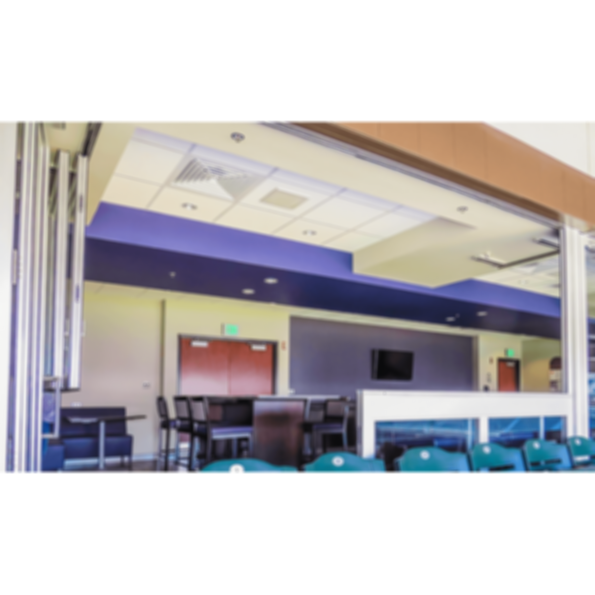

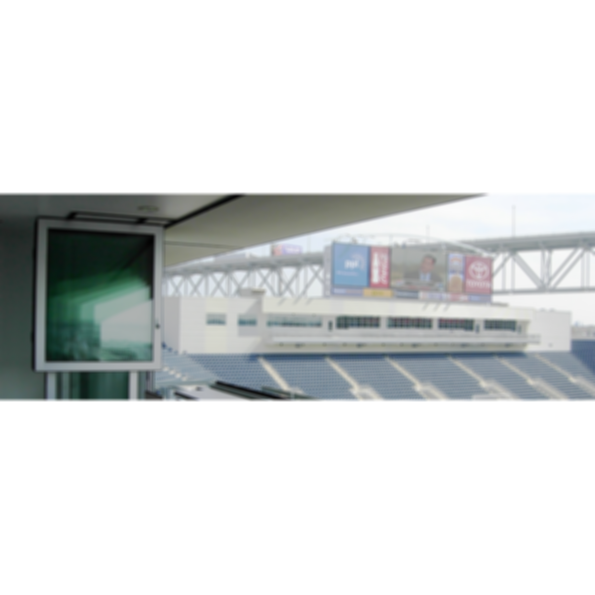

Stacking glass windows by Solar Innovations® are a smaller version of a stacking glass wall and are used in similar applications. This window system is suitable for residential use but is more commonly found in commercial applications. Stacking windows are often found in stadiums, used to divide conference rooms, or placed on the exterior of a restaurant or hotel. A stacking window system slides along a track and stacks into the wall at the end or makes a turn and then stacks into a remote location. This allows you to achieve breathtaking views without mullions or bars interrupting the sight line.

Also, there are no standard sizes; all stacking windows are custom design to fit your opening. Furthermore, the number of panels the project requires and size of each panel will determine the dimensions.

Operation: Stacking | Inswing and Outswing | Endless configurations possible

Primary Material: G2 Aluminum | G3 Aluminum

Width: Frame widths: 3-3/8", 2-7/16", and 1-5/8" (G3 only)

Panel Size: Minimum panel size: 21"w x 20"h |  smaller panels may be available upon engineering approval | Maximum panel size up to 4' x 6' depending on hardware limitations

Framing Type: High performance sills available on select systems | LEED friendly system including recycled content

Hardware Included: Multiple handle styles and finishes | Zero-maintenance extruded aluminum hinges with stainless steel pins | Custom manufactured pulls and locks

Glazing: Designed to accommodate almost any glass infill from 1" to 1-3/8"

Performance: Air, water, structural, impact, acoustical and thermally tested options

Finish: AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Options: Wood veneer or metal cladding | Framed and cartridge retractable screen options | Mullions, decorative muntins, simulated divided lites (SDLs), interior and exterior grids

Grill Pattern Available: Arched Grid | Gothic Grid | Double Gothic Grid | Traditional Grid | Cross Grid | English Grid
