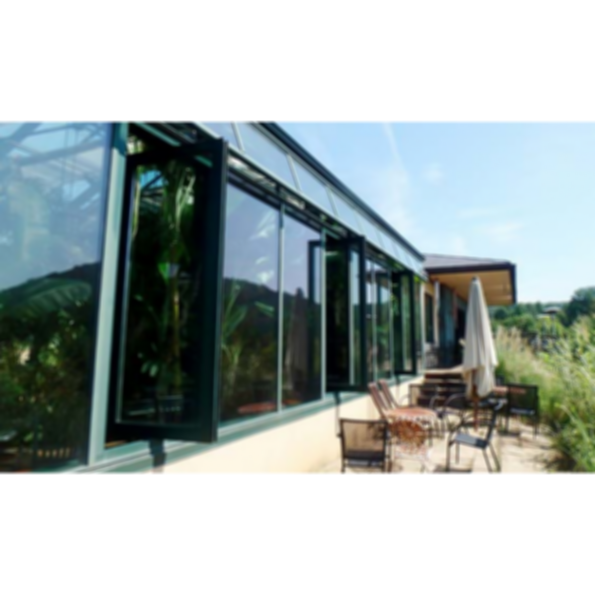

Pivoting

Pivot Window systems operate similar to a traditional door with the exception that they are not hinged at the jamb. Instead, they pivot at a point on the head and sill of the window frame. The pivot point is determined by the desired form and function of the window. The standard frame for this unit is our G2 system. Depending on the size of the unit, the thicker, G3 system, may be required. Due to the unique operation of this window, a screen cannot be provided as the window protrudes to both the inside and outside of the wall. Solar Innovations also offers this type of product as a door as well.

Operation: Pivot | Inswing and Outswing | Endless configurations possible

Primary Material: G2 Aluminum | G3 Aluminum

Width: Frame widths: 3-3/8", 2-7/16", and 1-5/8" (G3 only)

Panel Size: Up to 4' x 8' panels and larger

Framing Type: High performance sills available on select systems | LEED friendly system including recycled content

Hardware Included: Multiple handle styles and finishes | Zero-maintenance extruded aluminum hinges with stainless steel pins | Custom manufactured pulls and locks

Glazing: Designed to accommodate almost any glass infill from 1" to 1-3/8"

Performance: Air, water, structural, impact, acoustical and thermally tested options

Finish: AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Options: Wood veneer or metal cladding | Framed and cartridge retractable screen options | Mullions, decorative muntins, simulated divided lites (SDLs), interior and exterior grids

Grill Pattern Available: Arched Grid | Gothic Grid | Double Gothic Grid | Traditional Grid | Cross Grid | English Grid
