Pivot Doors

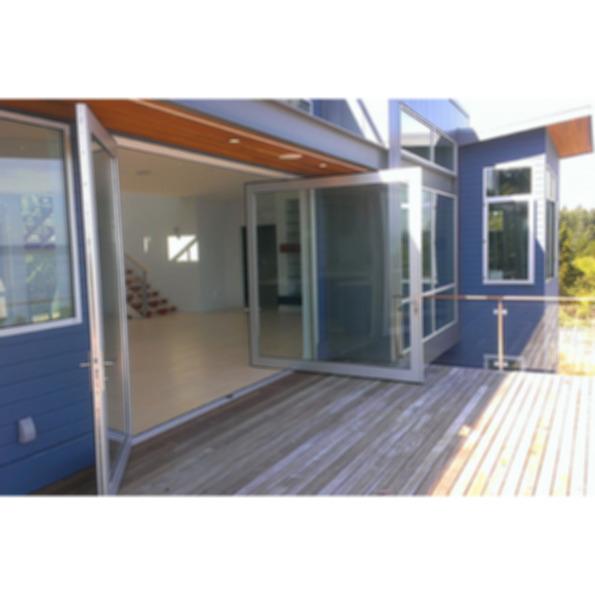

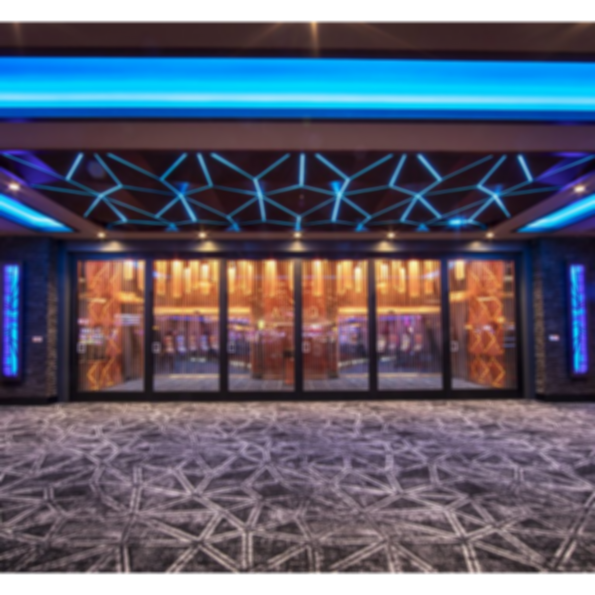

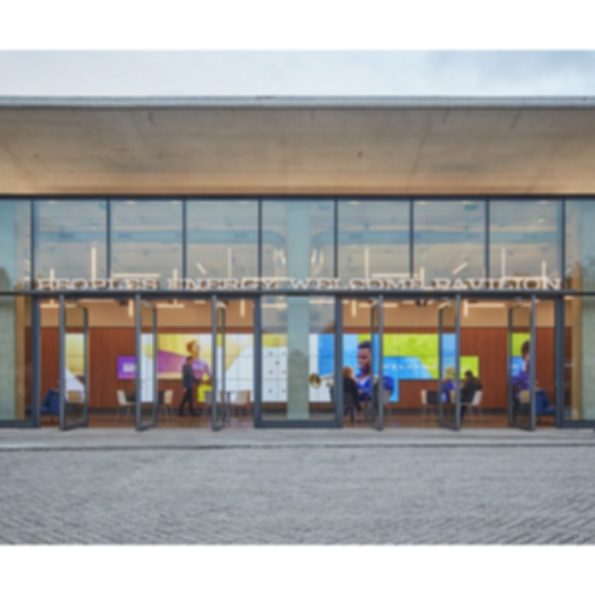

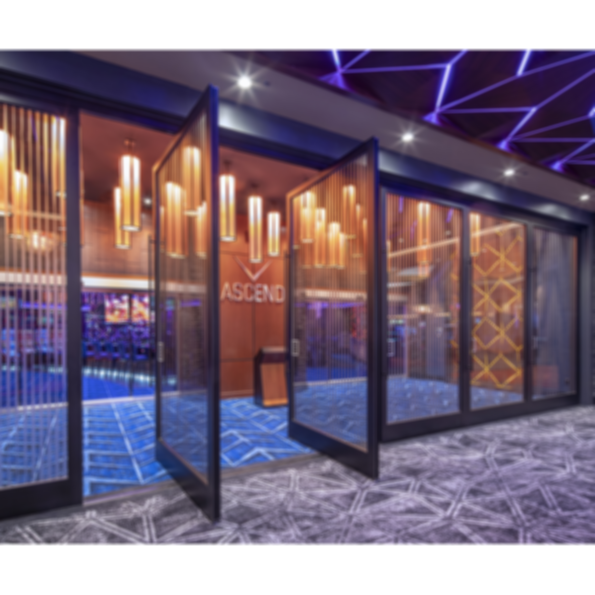

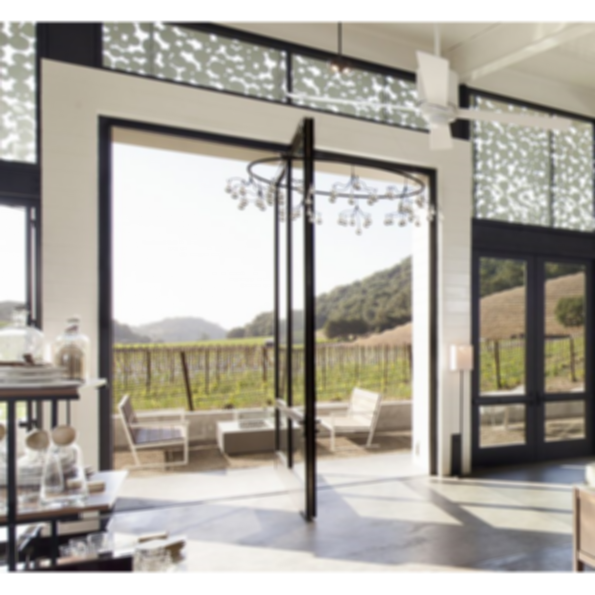

Solar Innovations®' thermally-isolated aluminum pivot doors are ideal for over-sized openings in interior and light exterior applications. The "hinges"—also known as the pins of the pivot door—are located at the top and bottom of the door, allowing the unit to pivot instead of swing open. Customers can choose to have a center-pivot door or have a custom pivot point.

Pivot door pins are located at the top and bottom of the frame, allowing the door to pivot. Each door's pivot point is custom located by request; center and off center pivot locations are available (subject to engineering approval). The pivot door matches that of our folding glass walls. This allows for transoms and sidelights to be constructed from the pivot door frame, creating the same sightlines for each unit.

Model: Series SI3000P

Performance: Thermally enhanced utilizing thermal strut | Test results available upon request

Glazing: Designed to accommodate almost any monolithic or insulated glazing infill from 3/16" to 1-1/4" | Designed to accommodate almost any monolithic or insulated glazing infill from ³/¹⁶" to 1-9/16"

Hardware Included: Self actuating closers | Panic hardware and door limiters available | Multiple hardware styles and finishes

Finish: AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Accessories: Matching fixed transoms and sidelites | Multiple sill designs, including ADA compliant ramps and sill-less options | Mullions, decorative muntins, simulated divided lites (SDLs), interior & exterior grids

Primary Material: G2 Aluminum | G3 & G3 Lite Aluminum

Panel Size: Up to 6' x 12' | Larger panel options may be available depending on application

Depth: G2: 2-1/4" | G3: 3"
