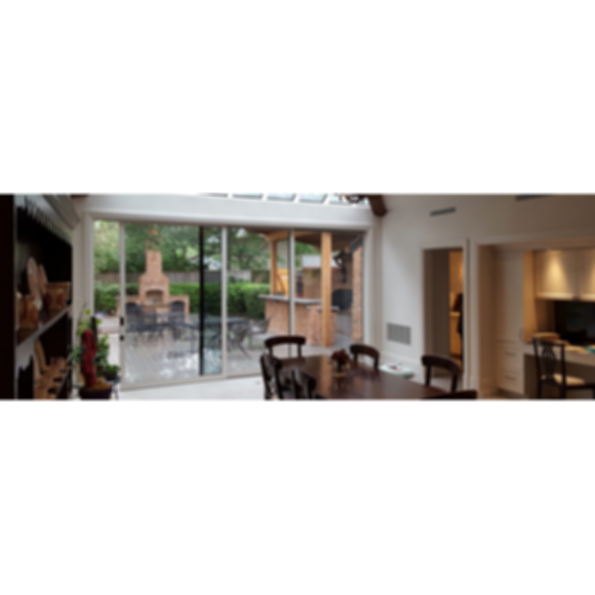

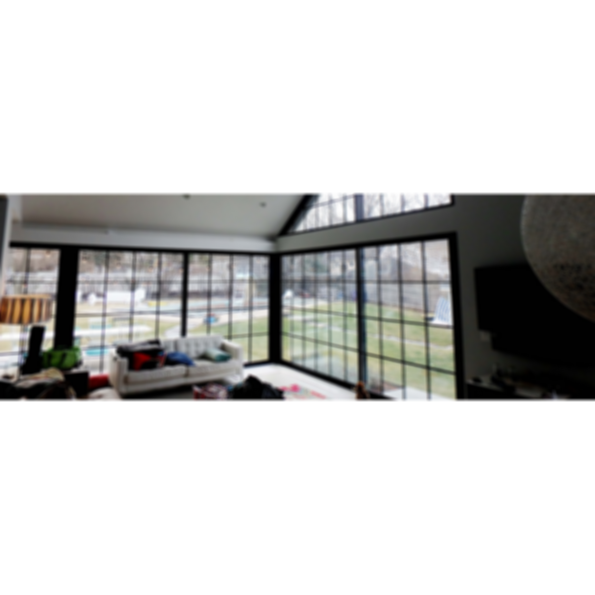

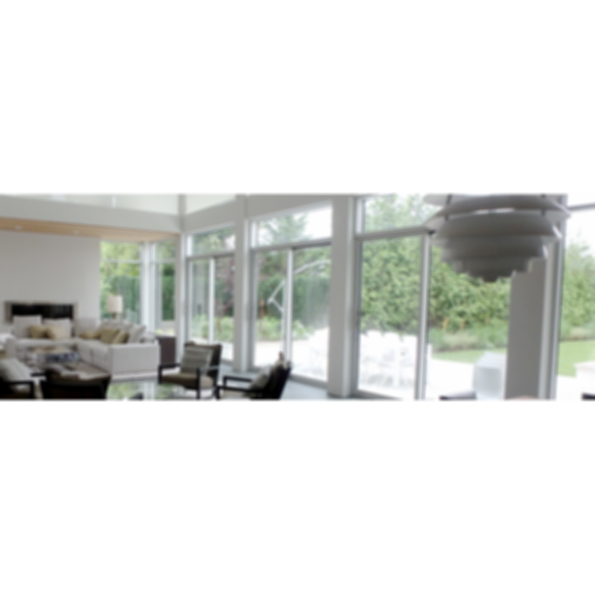

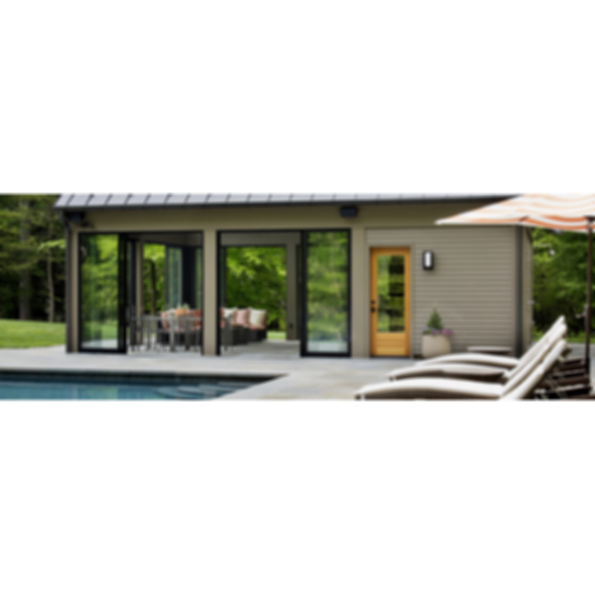

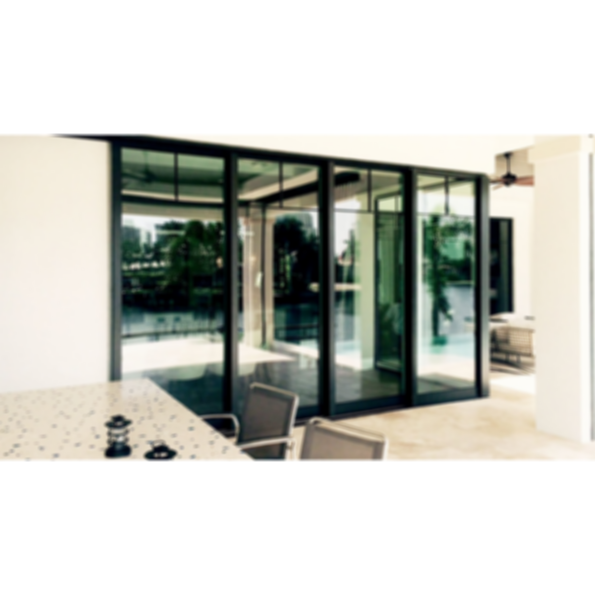

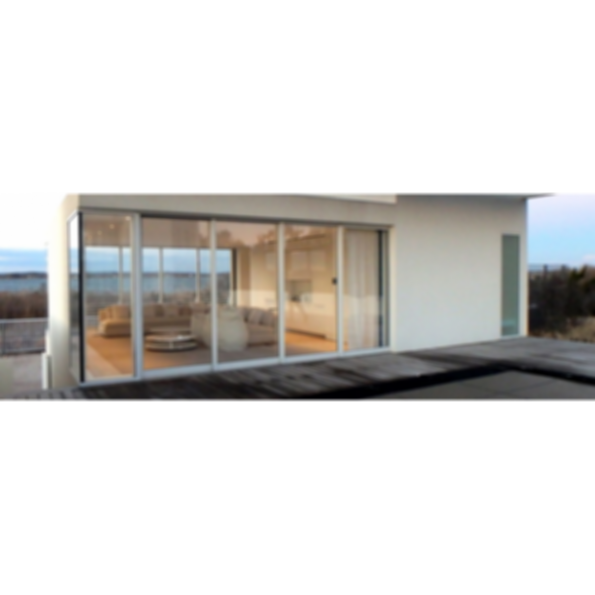

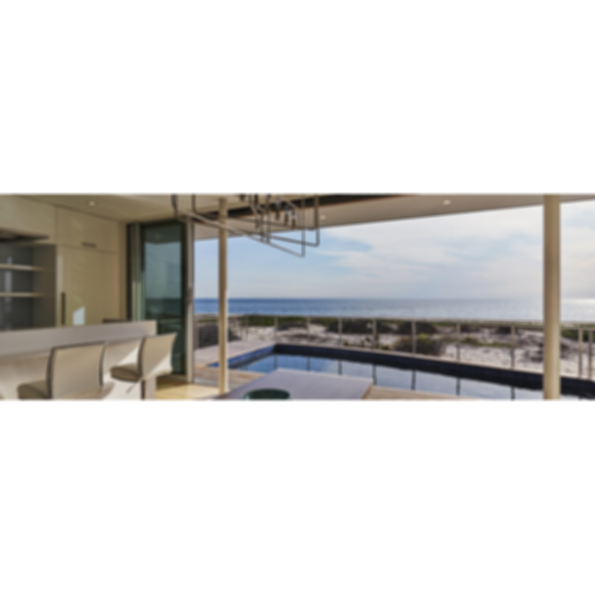

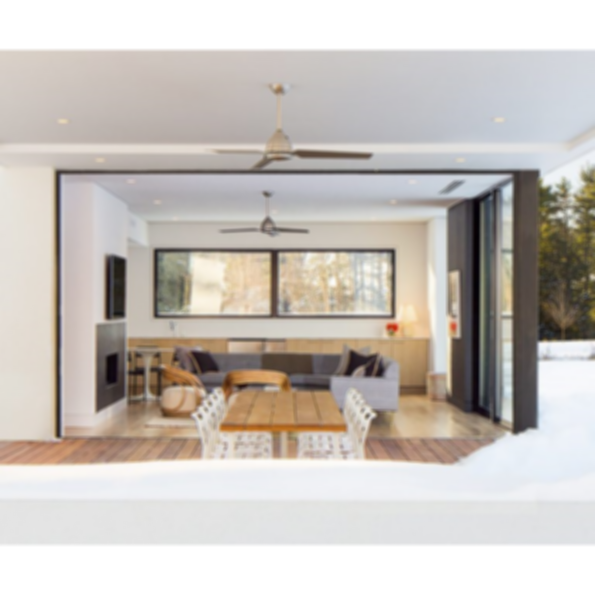

G2 Sliding Glass Door PXXP

The G2 Multi-Track Sliding Glass Door System is ideal for any commercial or residential entryway. For exterior applications, the frame can incorporate thermal breaks, that greatly reduce the heat and cold transfer from the exterior to the interior. For ease of use, our system can be motorized and even be controlled by a smart phone.

For coastal applications, our systems can be designed with high-performance sills, hurricane hook rails and/or laminated glazing that will protect your home in extreme conditions. Impact and Non-Impact sliding doors will utilize a non-thermal perimeter frame.

The G2 STC-rated Multi-Track Sliding Glass Door System is ideal for any application that has Sound Transmission Class (STC) requirements. Though acoustic values are typically specific to the glazing selection, the construction of the frame can greatly influence the acoustical performance. The G2 STC-rated system combines enhanced acoustical performance, superior thermal performance, and outstanding functionality.

Finish: AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Hardware Included: Custom manufactured operable hardware | Multiple hardware styles and finishes | Multiple sill designs, including high performance sill | Polymer and stainless steel rollers with precision bearings | 3" rollers for minimum panel width of 32" | 1-13/16" rollers for minimum panel width of 22" | Smaller panels may be available upon engineering approval

Model: Series SI8000

Performance: Weather-tight jamb interlock provides outstanding air and water performance

Glazing: Designed to accommodate almost any glazing infill including glass and solid-panel infills from 1/4" to 1-3/8"

Options: Matching fixed sidelites | Transoms possible on a project-by-project basis | True-radius and segmented-radius options available | Screen options: folding, sliding, retractable | Mullions, decorative muntins, simulated divided lites (SDLs), interior & exterior grids | No post 90° corners possible | Pocketing options: single or double sided | Factory installed sill drain tubes, if required | Motorized panels available

Panel Size: Minimum panel size: 22" wide |  smaller panels may be available upon engineering approva | Maximum panel size up to 6' x 10' |  larger panel options may be available depending on application

Depth: Varies with options selected

Primary Material: G2 Aluminum
