Folding - Thermal

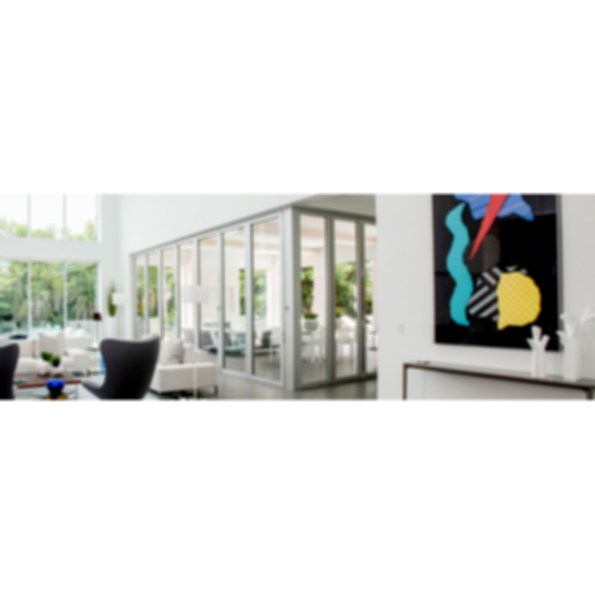

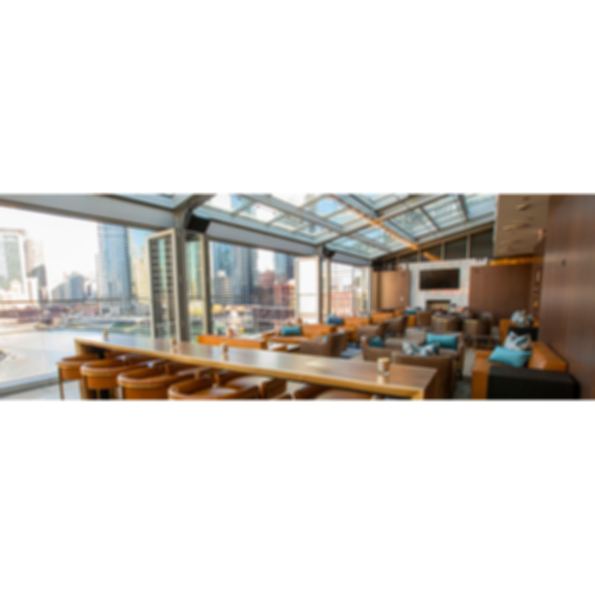

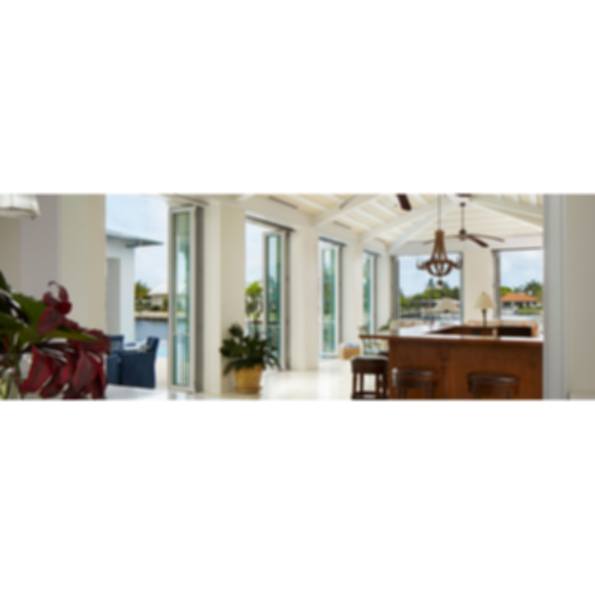

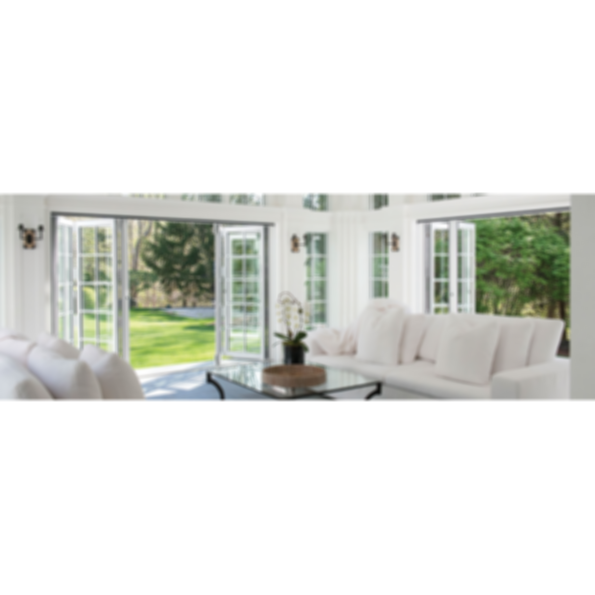

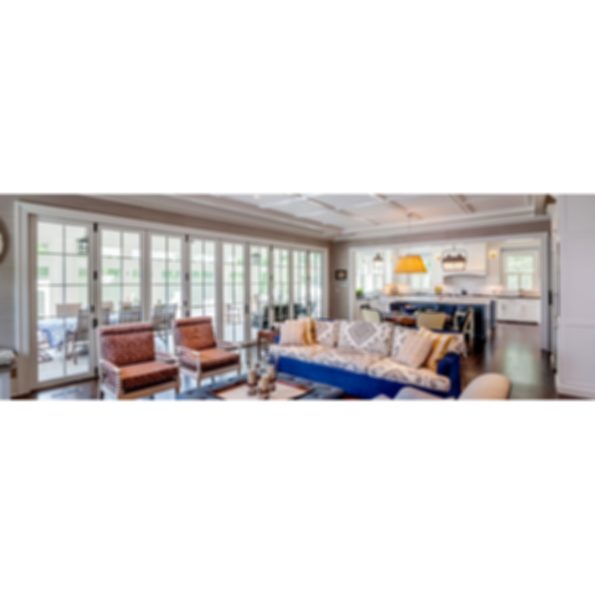

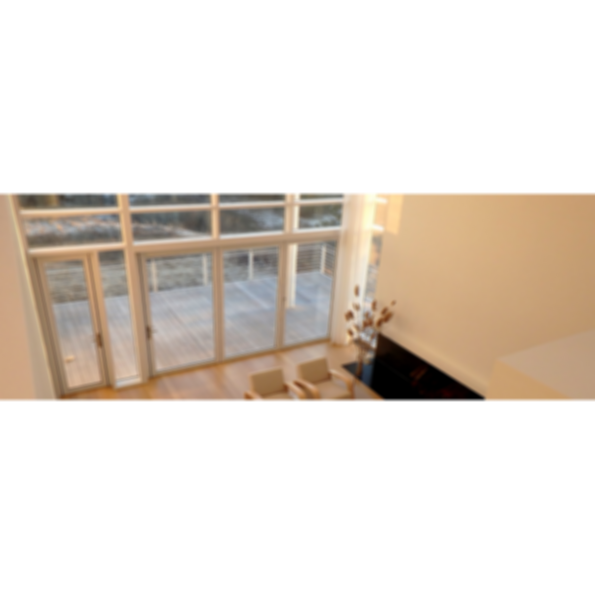

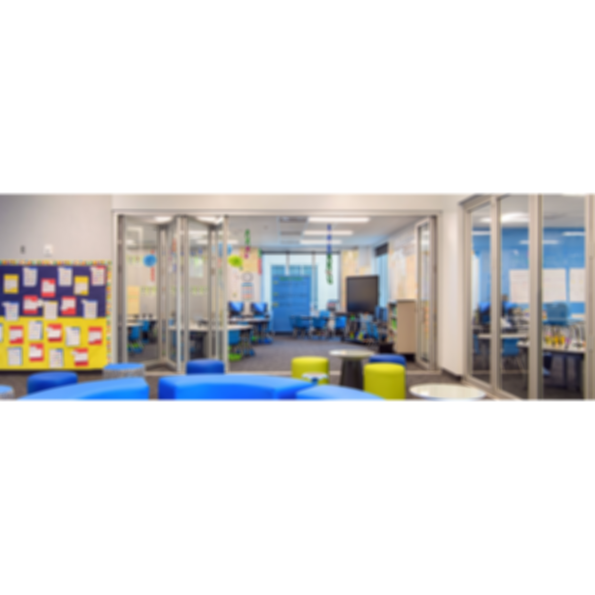

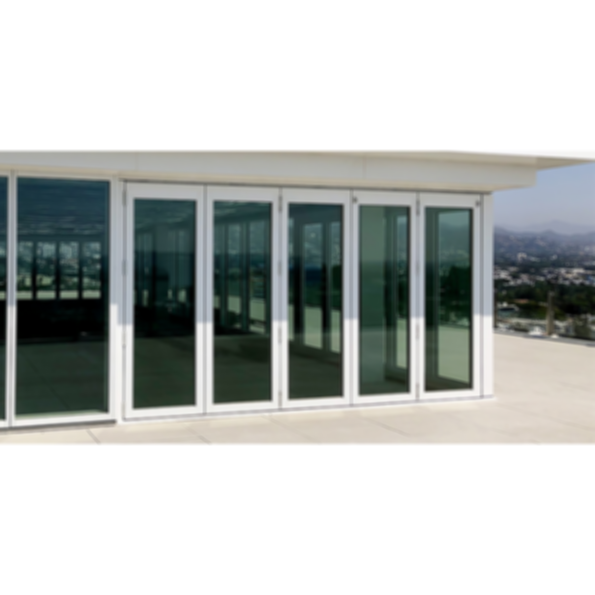

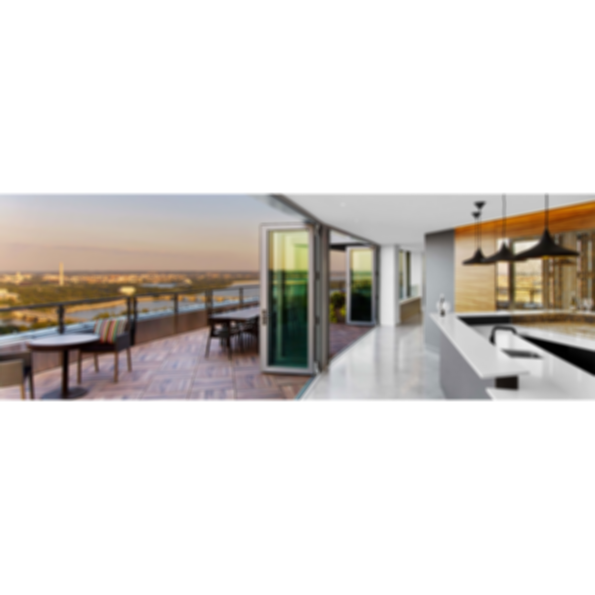

G2 Aluminum Folding Glass Wall Systems are a great way to open your environment to the outdoors. The frame uses a thermal strut system that separates the interior metal from the exterior metal. By including a thermal break, the temperature transfer between the outdoors and indoors is minimized.

The frames are available in two vertical stile widths: narrow and standard. The widths can be combined over multiple units for a unique style or kept consistent throughout. This flexibility allows multiple sightline and bottom rail configurations that can be retrofitted to match an existing opening or accommodate specific structural requirements.

Frames are available in three vertical stile widths: standard, narrow, and xtra narrow. You can select a consistent vertical width or mix and match the three stile widths to create a truly unique design.

Finish AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Primary Material G2 Aluminum | G3 Aluminum

Hardware Included Multiple handle styles and finishes | Panic hardware and closer options available | Roller assemblies designed to minimize and simplify panel maintenance | Zero-maintenance extruded aluminum hinges with stainless steel pins | Custom manufactured pulls and locks | Closers (overhead)

Operation Top or bottom load | In-fold or out-fold operation | Endless configurations possible | Swing door integration | No corner post (open corner) setup available | Center pivot option

Model: Series SI3000

Performance: Air, water, structural, impact, acoustical and thermally tested options

Glazing: Designed to accommodate almost any glazing infill including glass, acrylic, polycarbonate and solid panels, from 3/16" to 1-9/16"

Options: Wood veneer or metal cladding | Framed and cartridge retractable screen options | Manufacturer-installed sill drain tubes, if required | Mullions, decorative muntins, simulated divided lites (SDLs), interior and exterior grids

Panel Size: G2: Minimum panel size: 18" wide |  smaller panels may be available upon request | G2: Panel size up to 3′ x 10' |  larger panel options may be available depending on application | G3: Minimum panel width: 24" |  smaller panels may be available based upon request | G3: Panel size up to 3' x 15' |  larger panel options may be available depending on application
