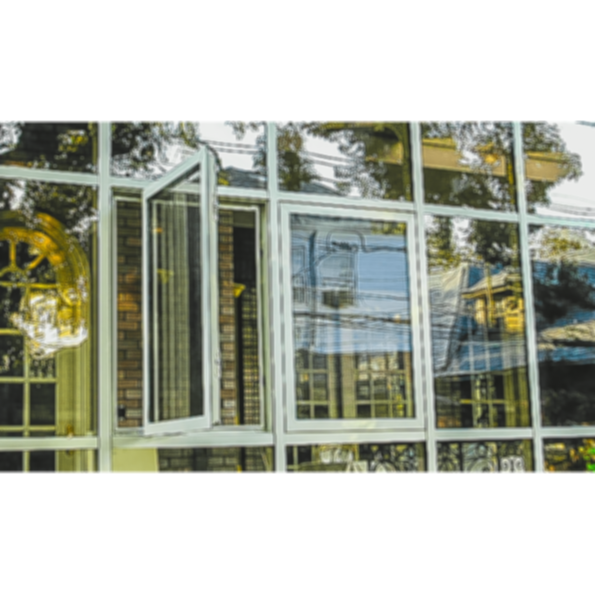

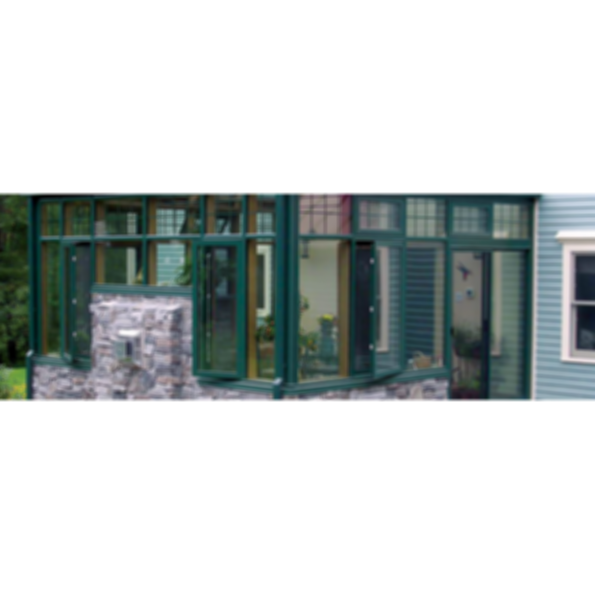

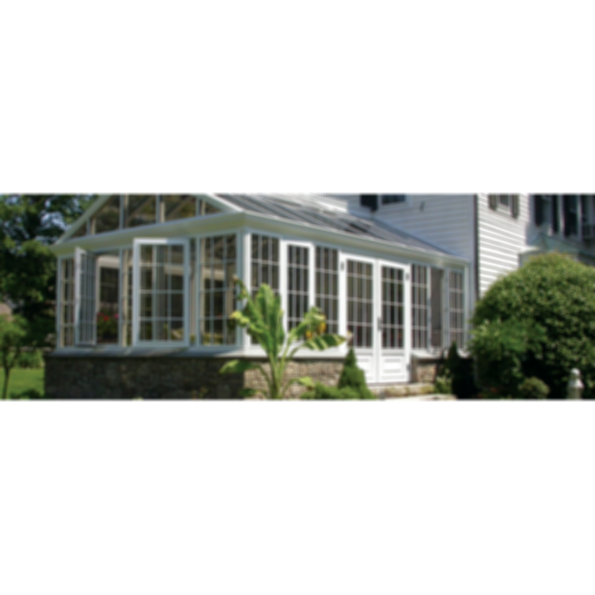

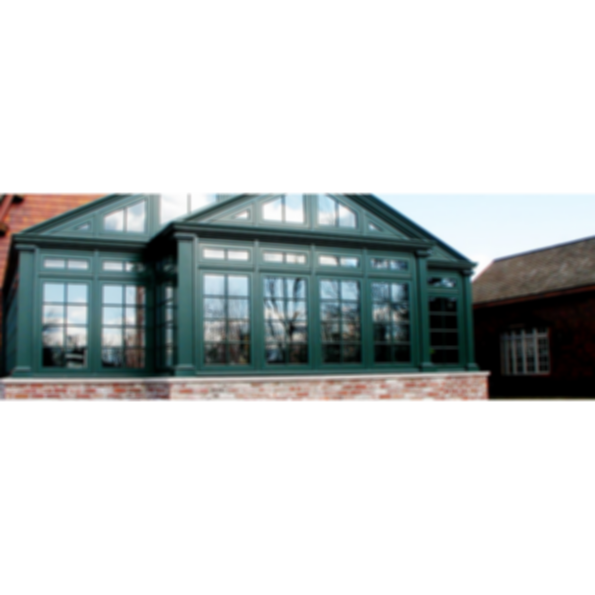

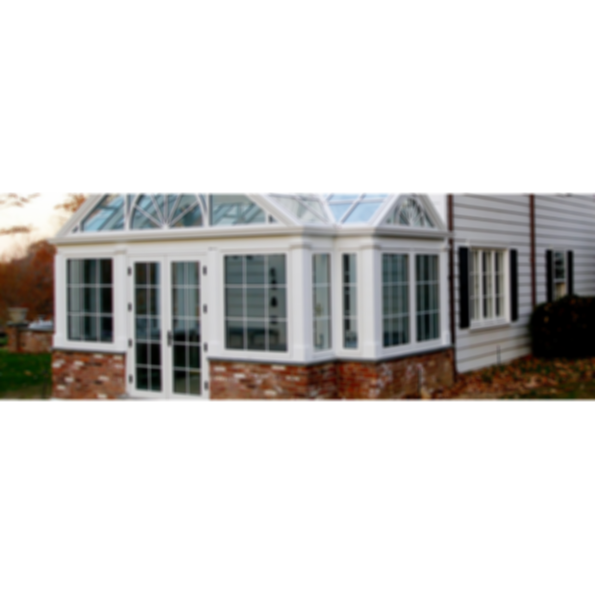

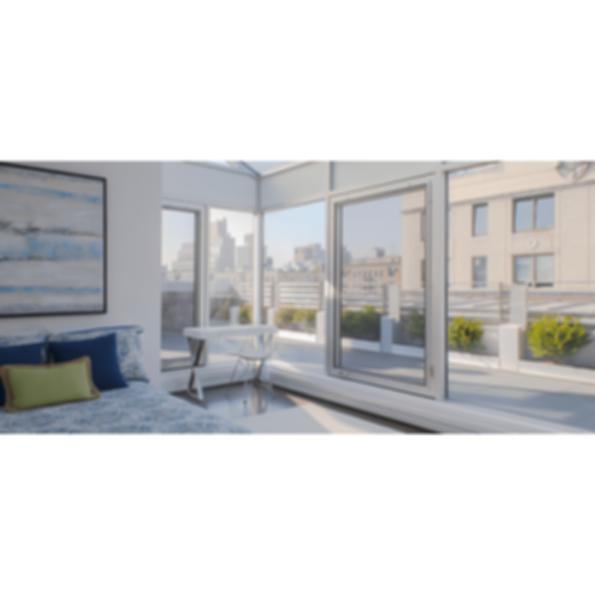

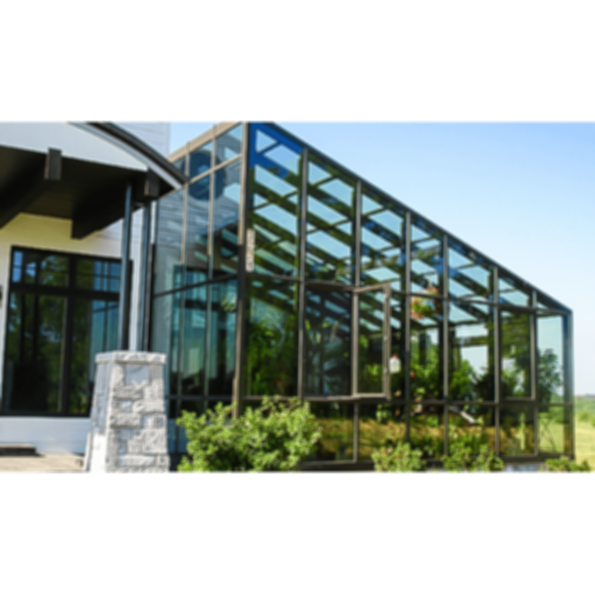

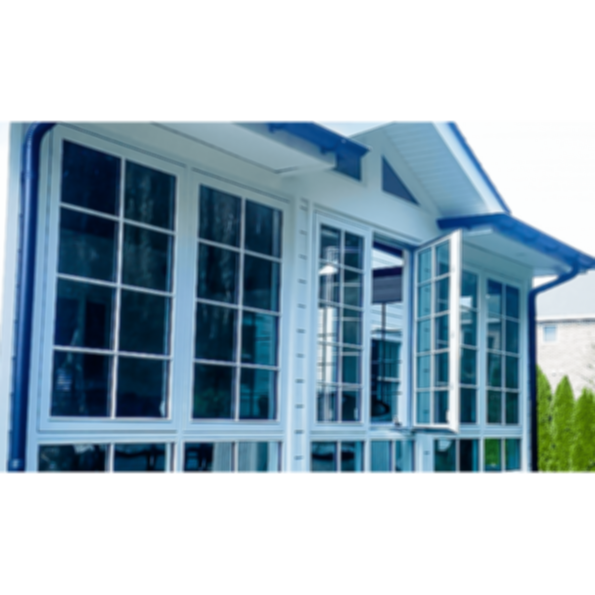

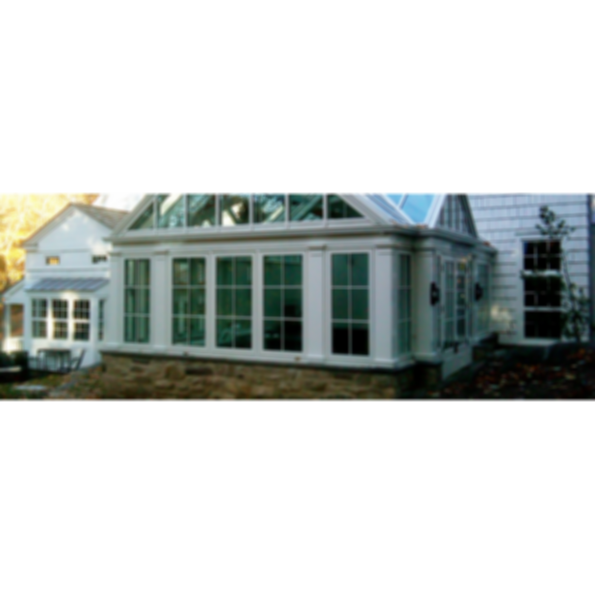

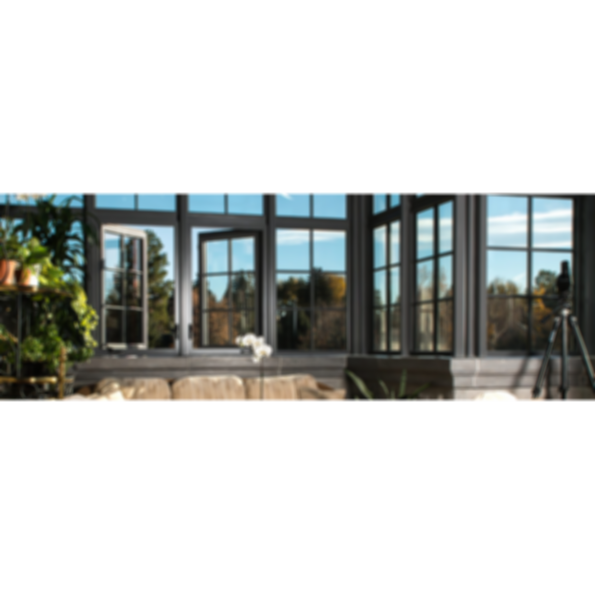

Casement

Casement windows are one of the most popular window styles in the world today. This system has been in existence since the beginning of the 18th century. First constructed out of iron and true leaded divisions, the casement window was only for the very wealthy. However, the industrial revolution changed this due to the introduction of mass production of glass and wooden frames. Today wooden casement windows are still very popular, but will rot, warp, possibly succumb to termites, and require stain or paint maintenance. To avoid these flaws all Solar Innovations® casement windows are made from an aluminum thermal frame, which helps with insulation and protection from the elements.

Operation: Casement | Inswing and Outswing | Endless configurations possible

Framing Type: High performance sills available on select systems | LEED friendly system including recycled content

Hardware Included: Multiple handle styles and finishes | Zero-maintenance extruded aluminum hinges with stainless steel pins | Custom manufactured pulls and locks

Glazing: Designed to accommodate almost any glass infill from 1" to 1-3/8"

Performance: Air, water, structural, impact, acoustical and thermally tested options

Finish: AAMA 611 Class I anodized finishes: Clear, Dark Bronze | Standard AAMA 2605 powder coat finishes: Black, White, Sandstone, Natural Clay, Bronze and Hartford Green | Premium AAMA 2605 powder coat finishes | Custom Fluoropolymer (50% or 70%): AAMA 2605 | Custom Faux wood (Decoral) | Custom Dual finish — interior/exterior applications

Options: Wood veneer or metal cladding | Framed and cartridge retractable screen options | Mullions, decorative muntins, simulated divided lites (SDLs), interior and exterior grids

Primary Material: G2 Aluminum

Grill Pattern Available: Arched Grid | Gothic Grid | Double Gothic Grid | Traditional Grid | Cross Grid | English Grid

Panel Size: Minimum panel size: 21"w x 20"h |  smaller panels may be available upon engineering approval | Maximum panel size up to 3' x 6' depending on hardware limitations

Width: Frame widths: 3-3/8" and 2-7/16"

Depth: Sash depth: 2-9/32" Projected |  2-5/8" G2 International
