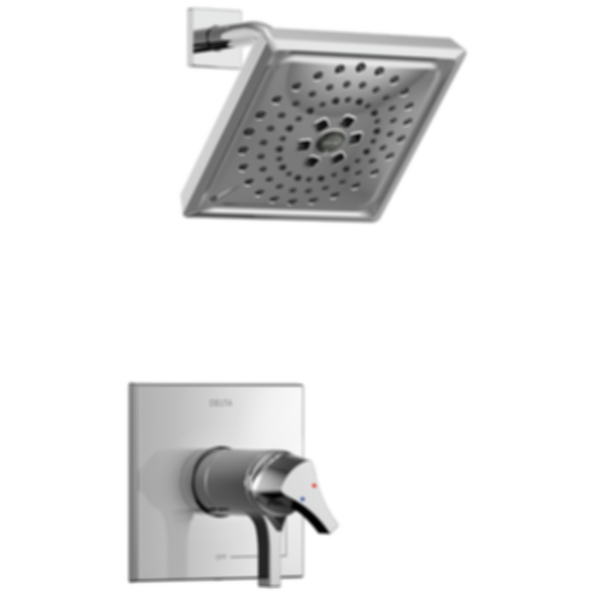

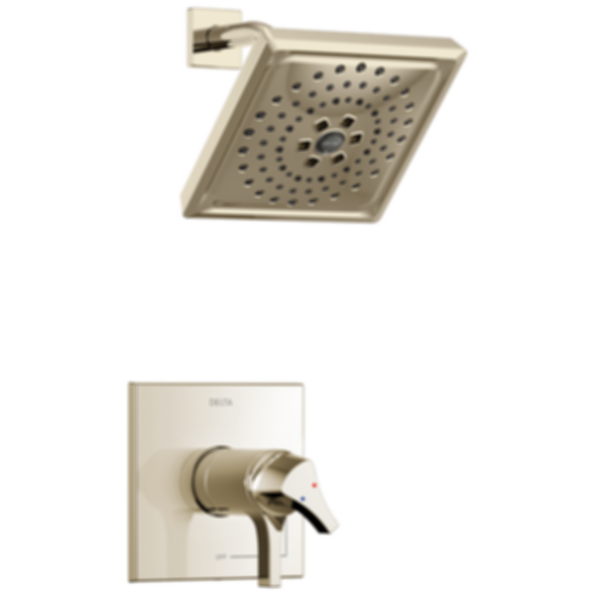

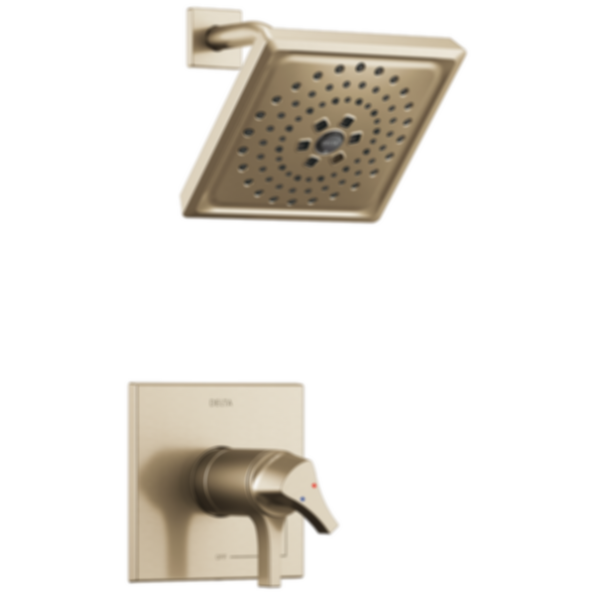

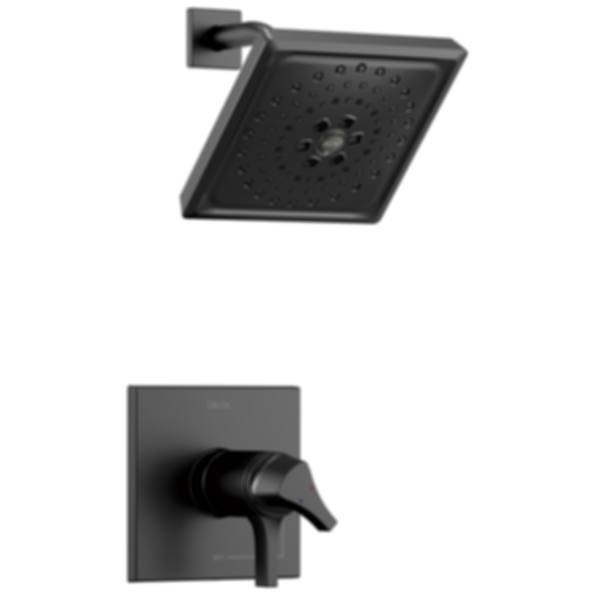

Zura TempAssure 17T Series Shower Trim - T17T274
Brand :
Category :
Product URL :
Download Files
Features:
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Must also order MultiChoice® Universal rough separately (R10000 series)
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Back-to-back installation capability
• Lever volume control handle; temperature adjustment dial
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Red/blue pad print temperature indicator on the temperature adjustment dial
• Stem extension kit RP75136 can be ordered to allow for an additional 1 3/4" wall thickness. RP75136 ships with chrome escutcheon screws.
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Must also order MultiChoice® Universal rough separately (R10000 series)
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Back-to-back installation capability
• Lever volume control handle; temperature adjustment dial
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Red/blue pad print temperature indicator on the temperature adjustment dial
• Stem extension kit RP75136 can be ordered to allow for an additional 1 3/4" wall thickness. RP75136 ships with chrome escutcheon screws.
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
