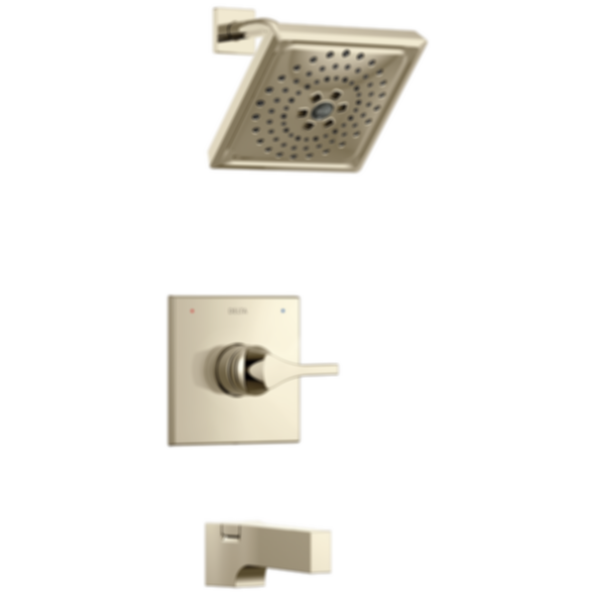

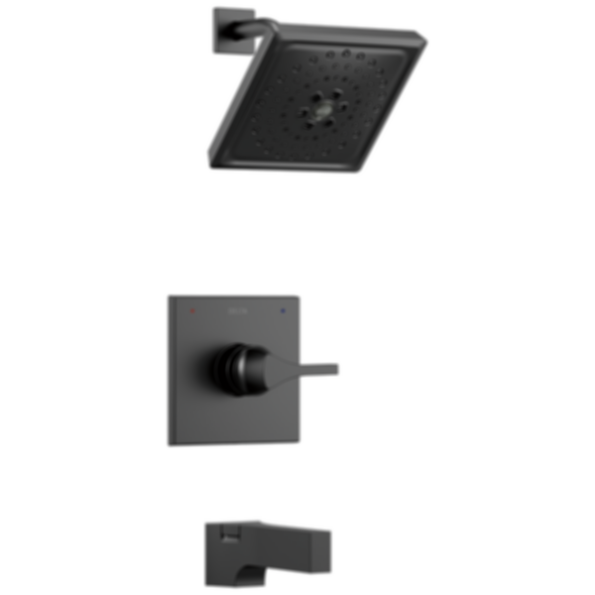

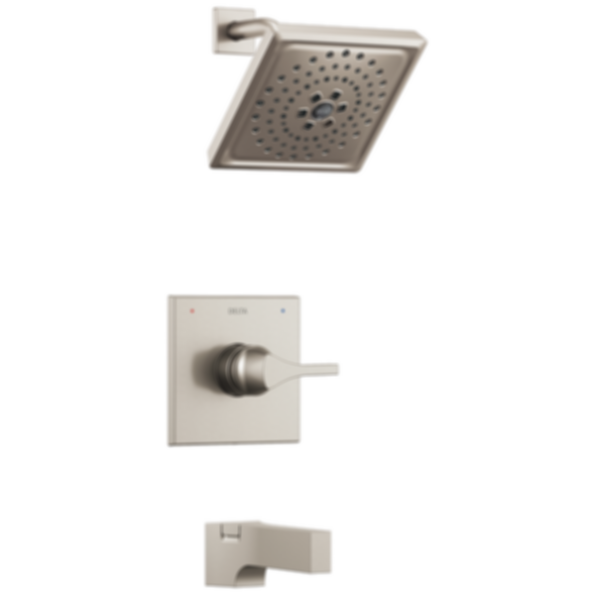

Zura Monitor 14 Series H2Okinetic Tub & Shower Trim - T14474
Brand :
Category :
Product URL :
Download Files
Features:
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Temperature only controlled with handle
• Field adjustable to limit handle rotation into hot water zone
• 120° maximum handle rotation
• All parts replaceable from the front of the valve
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
• Red/blue pad print temperature indicator on the temperature adjustment dial
• "-LHD" models indicate less showerhead
• Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Temperature only controlled with handle
• Field adjustable to limit handle rotation into hot water zone
• 120° maximum handle rotation
• All parts replaceable from the front of the valve
• Maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
• Red/blue pad print temperature indicator on the temperature adjustment dial
• "-LHD" models indicate less showerhead
• Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
