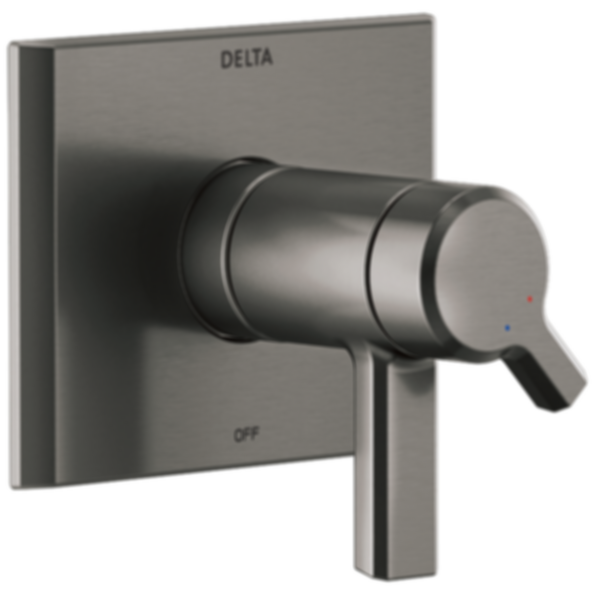

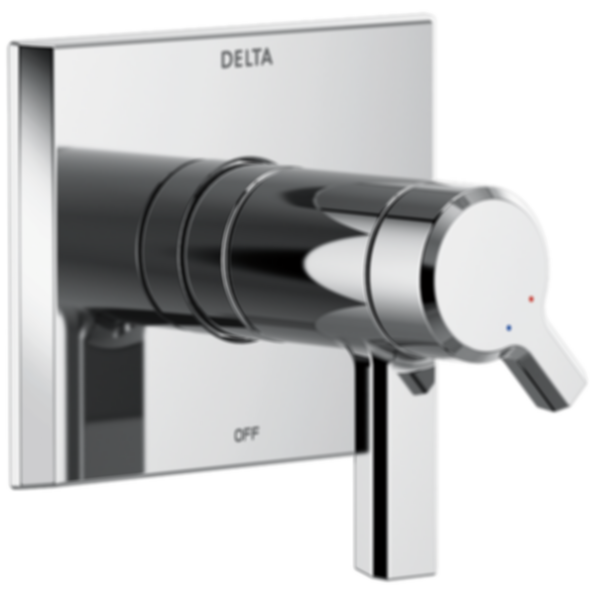

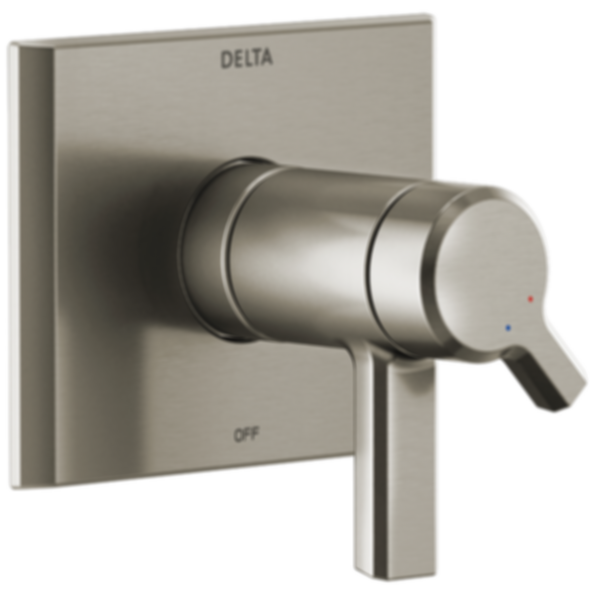

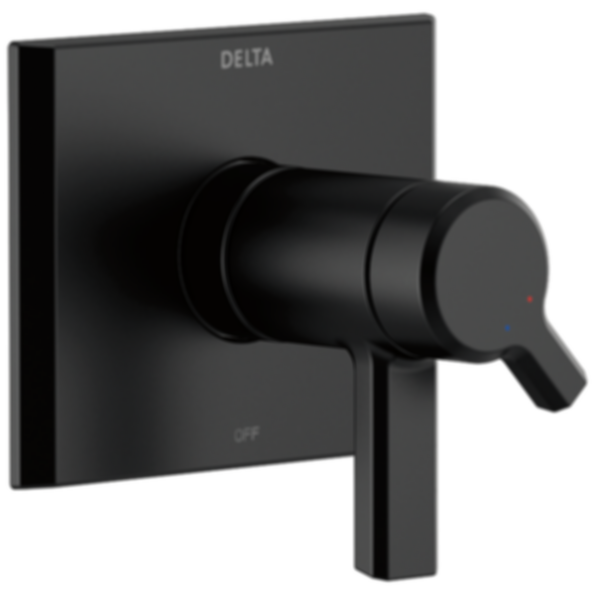

Pivotal TempAssure 17T Series Valve Only Trim - T17T099
Brand :
Category :
Product URL :
Download Files
Features:
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Maximum 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Must also order MultiChoice® Universal rough separately (R10000 series)
• Back-to-back installation capability
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Red/blue pad print temperature indicator on the temperature adjustment dial
• Stem extension kit RP75136 can be ordered to allow for an additional 1 3/4" wall thickness. RP75136 ships with chrome escutcheon screws.
• Shower arm overall horizontal length =16" (406 mm), including threaded ends
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Maximum 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Must also order MultiChoice® Universal rough separately (R10000 series)
• Back-to-back installation capability
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Red/blue pad print temperature indicator on the temperature adjustment dial
• Stem extension kit RP75136 can be ordered to allow for an additional 1 3/4" wall thickness. RP75136 ships with chrome escutcheon screws.
• Shower arm overall horizontal length =16" (406 mm), including threaded ends
