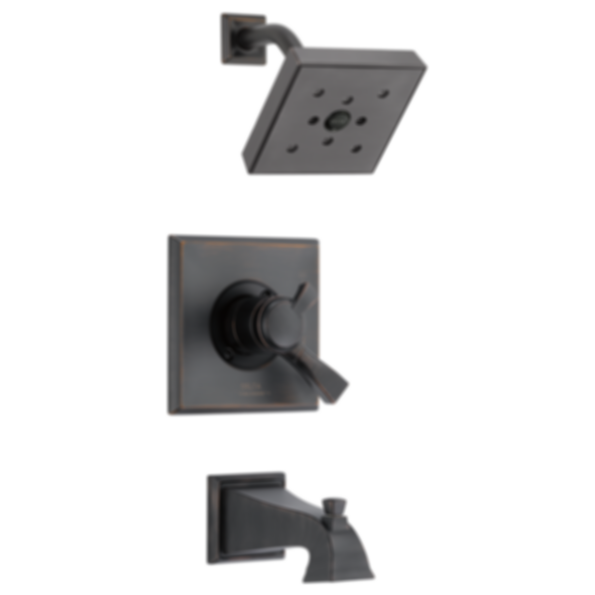

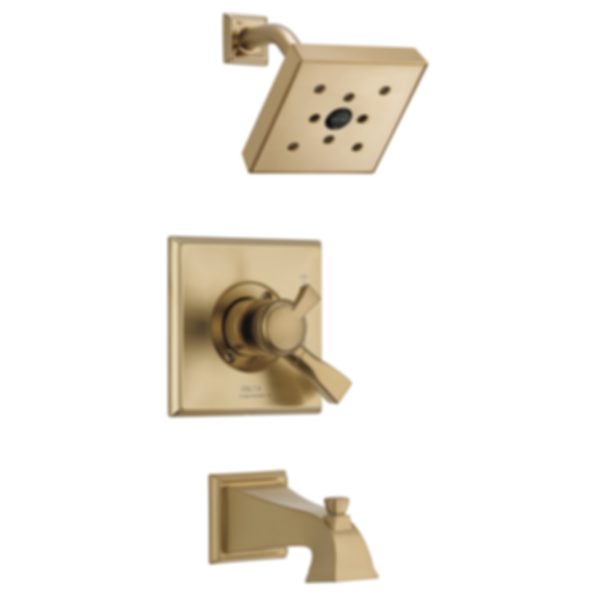

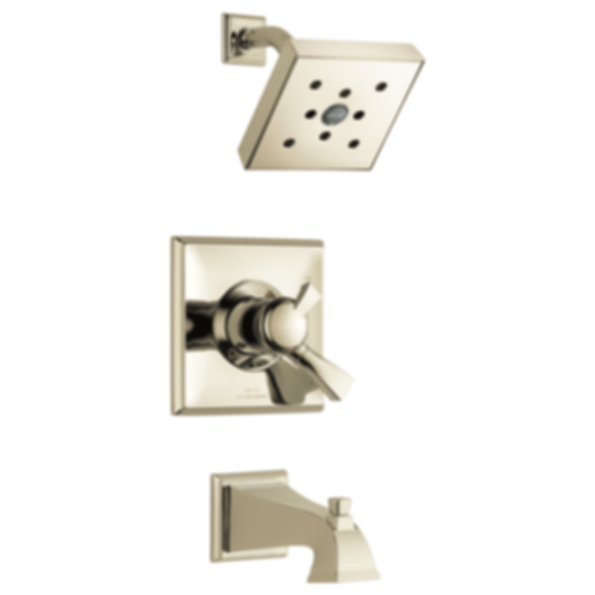

DRYDEN Monitor 17 Series H2Okinetic Tub & Shower Trim -T17451-H2O
Brand :
Category :
Product URL :
Download Files
Features:
• Monitor® 17 Series pressure balanced bath mixing valve trim
• "-H2O" models include H2Okinetic® Technology shower head
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Must also order Multi-Choice® Universal rough separately
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Maximum 2.5 gpm @ 80 psi for standard models and 1.75 gpm @ 80 psi for models with -WE suffix
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
• Monitor® 17 Series pressure balanced bath mixing valve trim
• "-H2O" models include H2Okinetic® Technology shower head
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Must also order Multi-Choice® Universal rough separately
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Maximum 2.5 gpm @ 80 psi for standard models and 1.75 gpm @ 80 psi for models with -WE suffix
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
