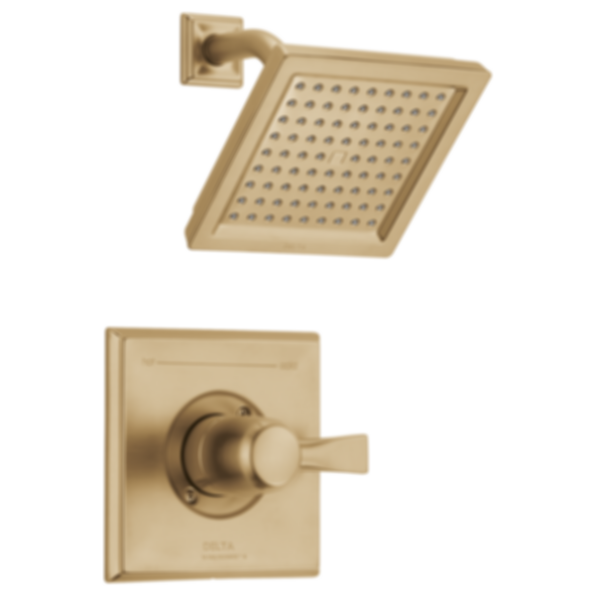

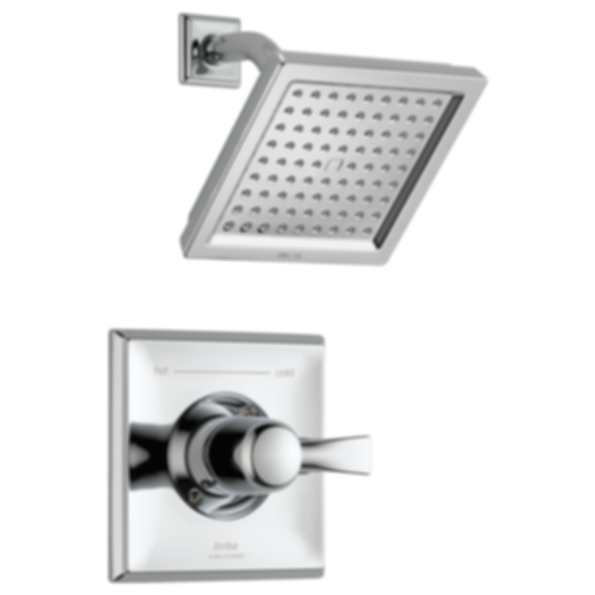

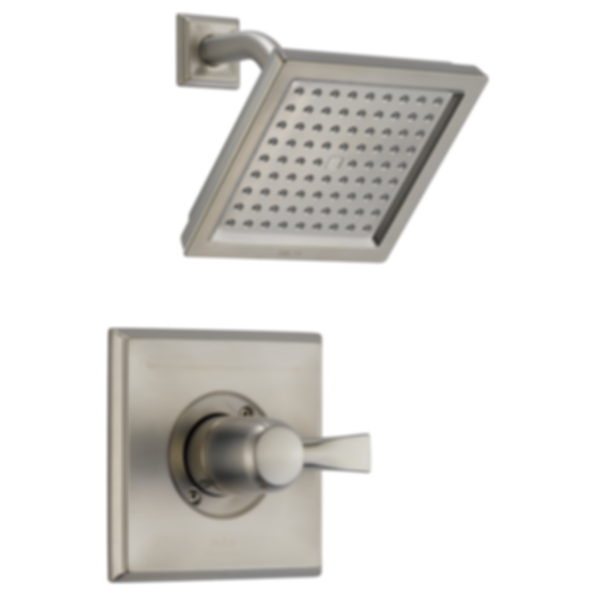

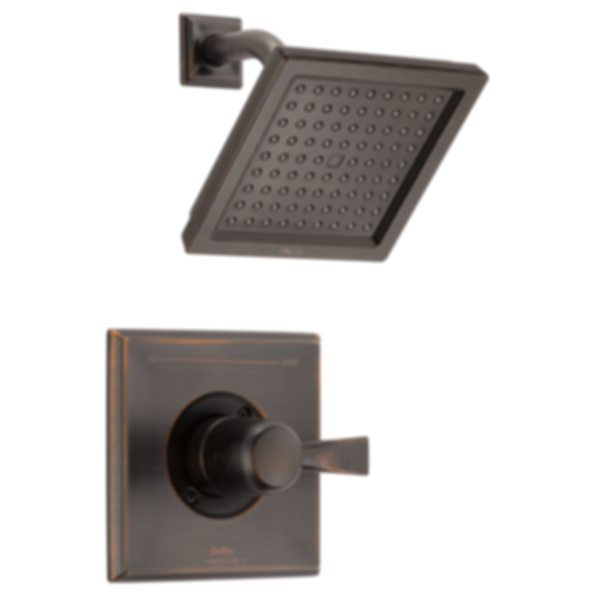

DRYDEN Monitor 14 Series Shower Trim - T14251-WE
Brand :
Category :
Product URL :
Download Files
Features:
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Temperature only controlled with handle
• Field adjustable to limit handle rotation into hot water zone
• 120° maximum handle rotation
• All parts replaceable from the front of the valve
• Maximum 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa for standard models and maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa for models with -H2O & -WE suffix
• Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
• "-LHD" models have pad printed red/blue temperature indication less shower head
• Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Temperature only controlled with handle
• Field adjustable to limit handle rotation into hot water zone
• 120° maximum handle rotation
• All parts replaceable from the front of the valve
• Maximum 2.5 gpm @ 80 psi, 9.5 L/min @ 550 kPa for standard models and maximum 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa for models with -H2O & -WE suffix
• Tub port maximum flow rate 6.0 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 5 1/2" (138 mm), including threaded ends
• "-LHD" models have pad printed red/blue temperature indication less shower head
• Stem extension kit RP77991 can be ordered to allow for an additional 1 3/4" wall thickness. RP77991 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
