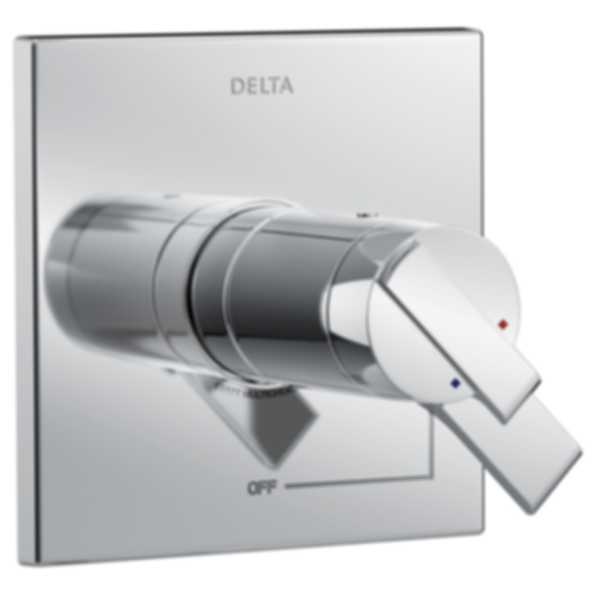

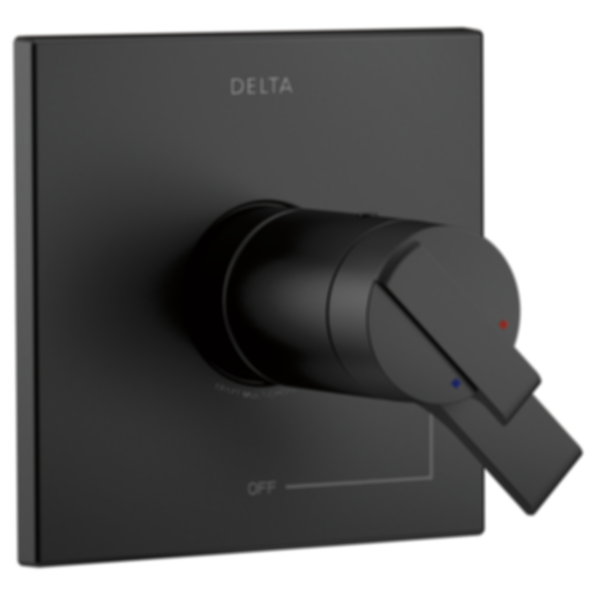

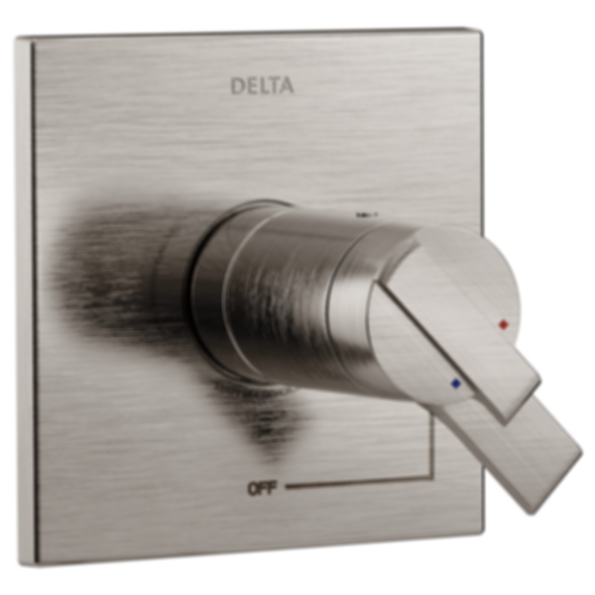

ARA TempAssure 17T Series Valve Only Trim - T17T067
Brand :
Category :
Product URL :
Download Files
Features:
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Must also order Multi-Choice® Universal rough separately (R10000)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Red/blue indicator markings
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Available extension kit (RP75136) adds up to 1 3/8" installation depth
• H2Okinetic® shower head 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 16" (406 mm), including threaded ends
• Thermostatic wax element maintains the outlet temperature to ±3.6ºF
• Must also order Multi-Choice® Universal rough separately (R10000)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Red/blue indicator markings
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit rotation into hot water zone
• All parts are replaceable from the front of the valve
• Adjusts for up to 1" wall thickness
• Available extension kit (RP75136) adds up to 1 3/8" installation depth
• H2Okinetic® shower head 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 8.6 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 16" (406 mm), including threaded ends
