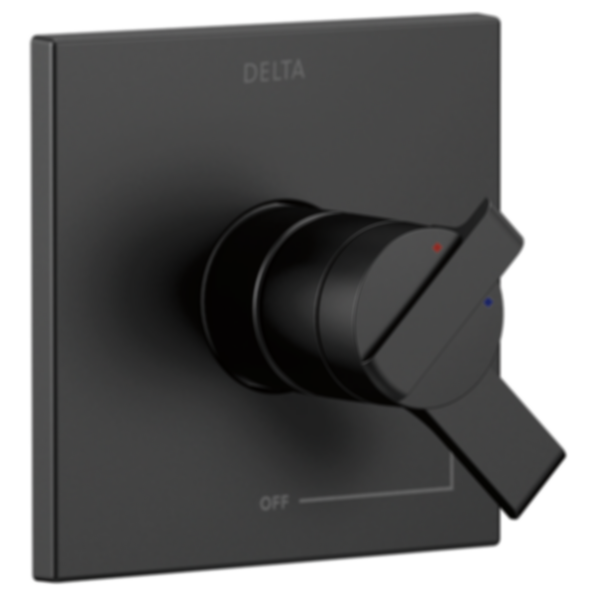

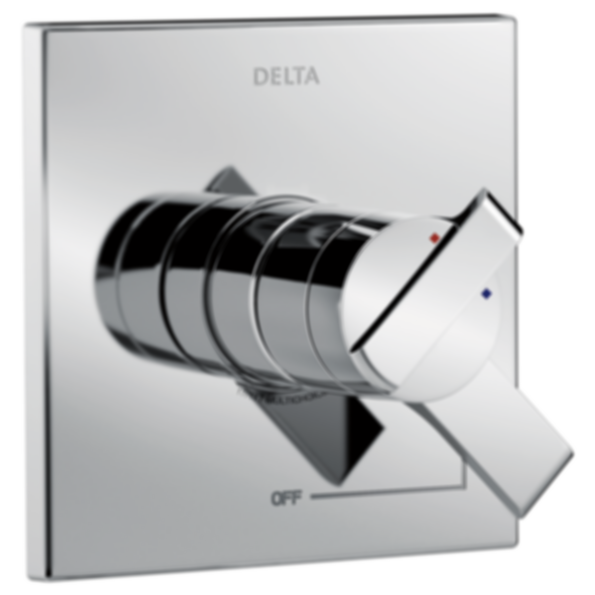

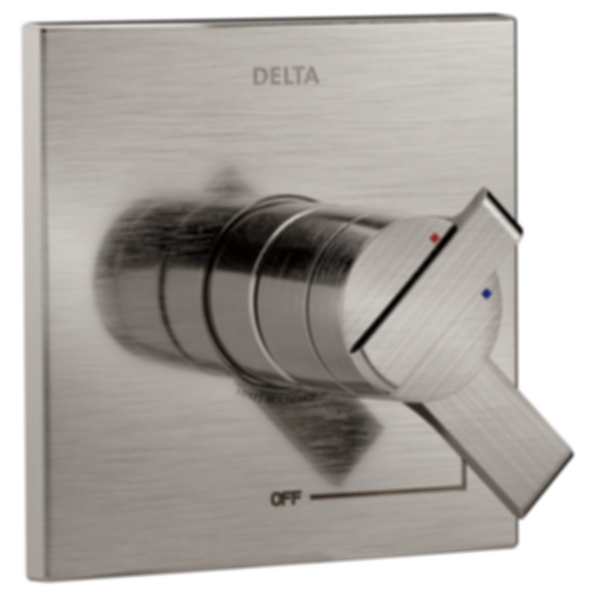

ARA Monitor 17 Series Valve Only Trim - T17067
Brand :
Category :
Product URL :
Download Files
Features:
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 7" (178 mm), including threaded ends
• Red/blue indicator markings
• Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness. RP77992 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• For use with MultiChoice® Universal rough valve body (R10000 Series)
• Back-to-back installation capability
• Solid brass forged body
• Lever volume control handle; temperature adjustment dial
• Field adjustable to limit handle rotation into hot water zone
• Maximum dial rotation adjustable between 90° and 180°
• All parts replaceable from the front of the valve
• 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Tub port maximum flow rate 6.2 gpm @ 60 psi with R10000-UNBX
• Shower arm overall horizontal length = 7" (178 mm), including threaded ends
• Red/blue indicator markings
• Stem extension kit RP77992 can be ordered to allow for an additional 1 3/4" wall thickness. RP77992 ships with chrome escutcheon screws. For special finishes also order RP12630 escutcheon screws in desired finish.
