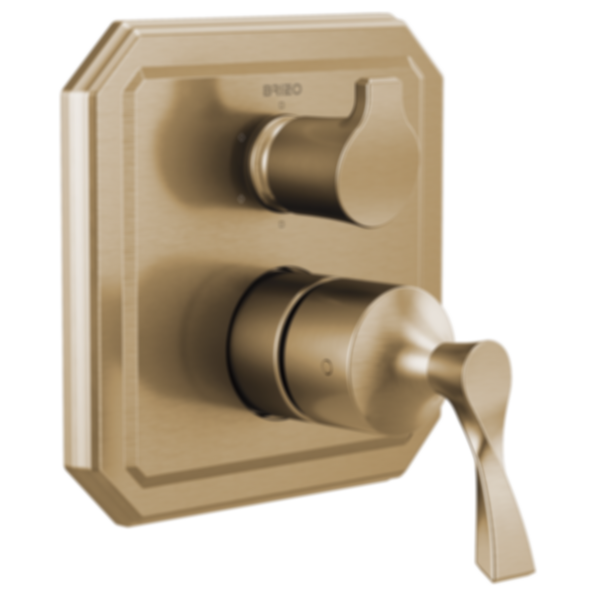

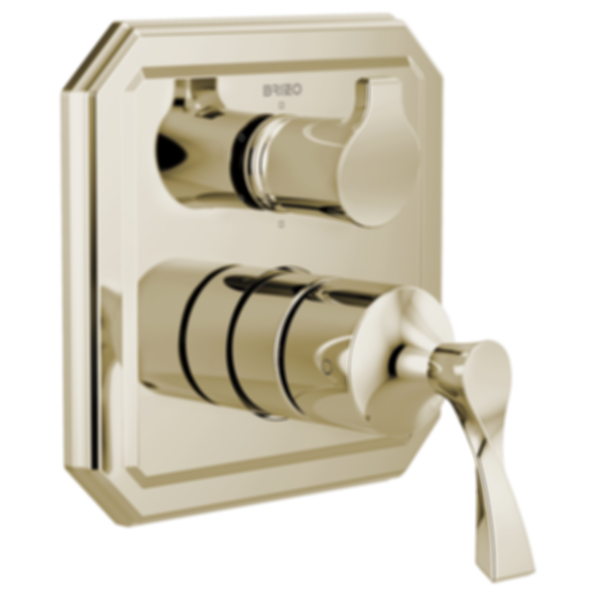

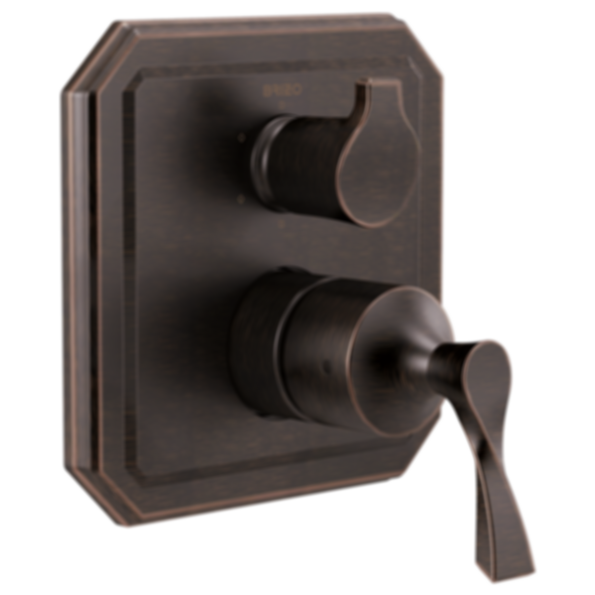

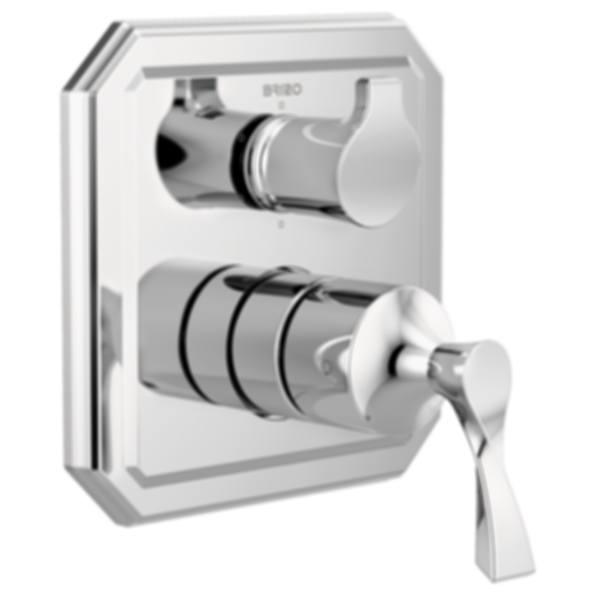

VIRAGE® Pressure Balance Valve with Integrated 6-Function Diverter Trim - T75P630-PC
Brand :
Category :
Product URL :
Download Files
Features:
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 5.0 gpm at 60 psi with R75000
• Top handle controls diverter functions
• Bottom handle controls on/off and temperature
• Field adjustable to limit handle rotation into hot water zone
• Bottom handle 120° maximum rotation
• Red/Blue temperature indicator markings
• Three function diverter (T75P530-) has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter (T75P630-) has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 11/8" finished wall thickness
• Thick wall installation kit RP100160 can be ordered to allow for up to 2 1/8" finished wall thickness
• Maintains a balanced pressure of hot and cold water even when a valve is turned on or off elsewhere in the system
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 5.0 gpm at 60 psi with R75000
• Top handle controls diverter functions
• Bottom handle controls on/off and temperature
• Field adjustable to limit handle rotation into hot water zone
• Bottom handle 120° maximum rotation
• Red/Blue temperature indicator markings
• Three function diverter (T75P530-) has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter (T75P630-) has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in
• Cartridges included
• Standard installation allows up to 11/8" finished wall thickness
• Thick wall installation kit RP100160 can be ordered to allow for up to 2 1/8" finished wall thickness
