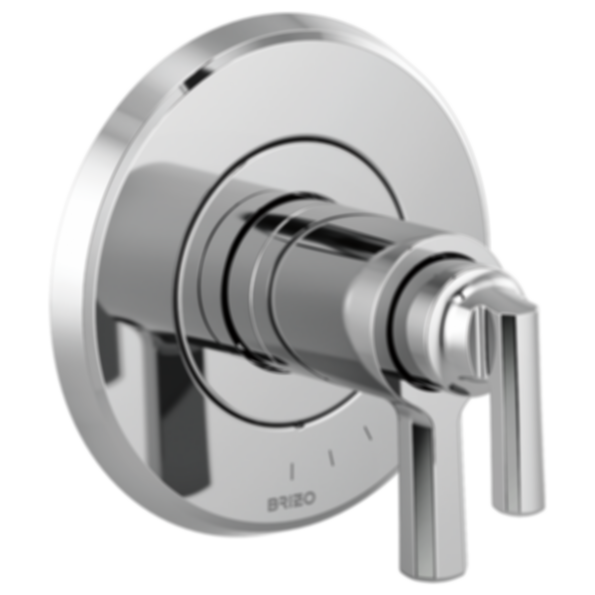

LEVOIR® Tempassure® Thermostatic Valve Only Trim - T60098-PC

Brand :

Brizo

Category :

Shower Fixtures

Product URL :

https://www.brizo.com/bath/product/T60098-SL

Download Files

Features:
• Multi-function showerhead featuring H2Okinetic Technology; 1.75 gpm @ 80 psi, 6.6 L/min @ 550 kPa
• Maximum system flow rate 9.4 gpm @ 60 psi with R60000-UNBXHF
• Thermostatic wax element maintains the outlet temperature to ±3.6˚F
• Must also order MultiChoice® Universal rough valve body (R60000 Series)
• Back-to-back installation capability
• Bottom (2) handles control on/off and temperature
• Graphics indicate hot/cold temperature adjustment
• Field adjustable to limit handle rotation into hot water zone
• All parts replaceable from the front of the valve
• Adjusts for up to 1" wall thickness. Optional extension kit (RP74785) extends rough installation up to 1 3/4"
• Tool for shower head to shower arm assembly provided

File Type

CSI Divisions

10 28 13 Toilet Accessories 10 28 16 Bath Accessories
