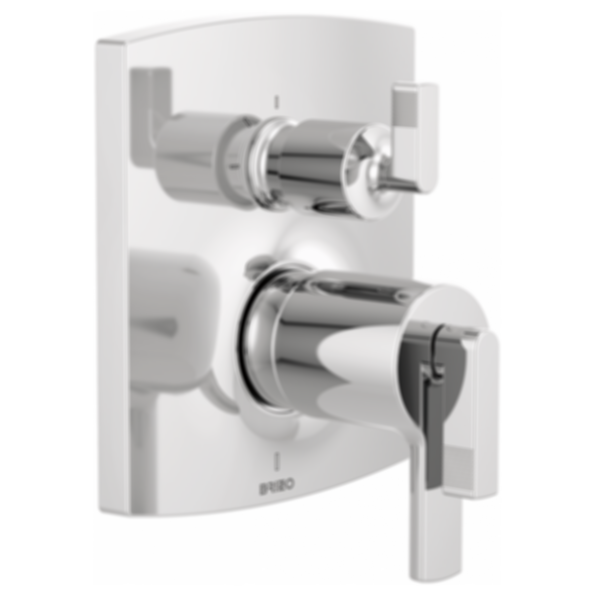

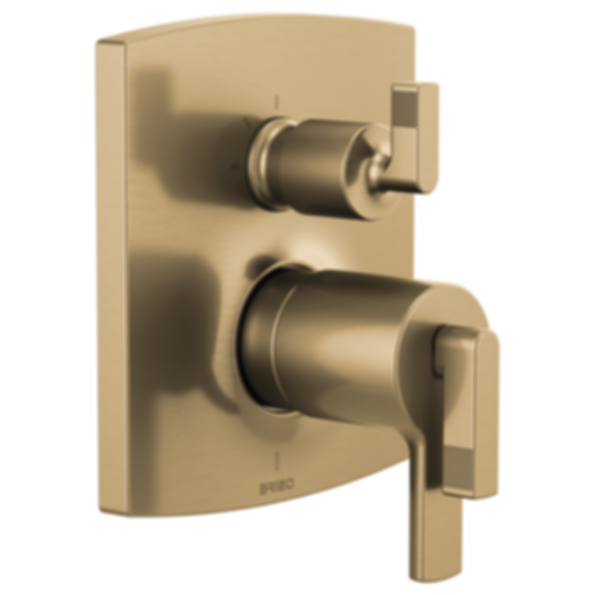

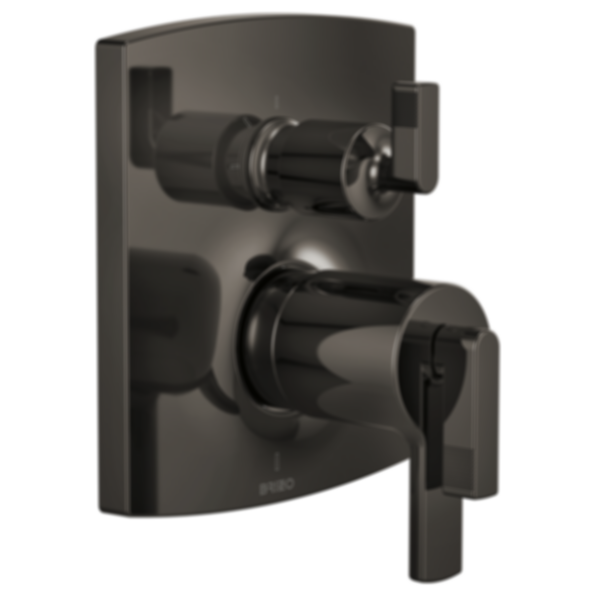

Kintsu® TempAssure Thermostatic Valve with Integrated 3-Function Diverter Trim - Less Handles - T75506-PCLHP
Brand :
Category :
Product URL :
Download Files
Features:
• Main control utilizes thermostatic valve cartridge.
• Thermostatic wax element maintains the outlet temperature to ±3.6° F.
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 7.2 gpm @ 60 psi with R75000
• Top handle controls diverter functions.
• Bottom (2) handles control on/off and temperature.
• Field adjustable to limit handle rotation into hot water zone.
• Bottom handle 90° Maximum rotation.
• Hot/cold indicator markings.
• Three function diverter (T75506-LHP) has 2 individual positions and 1 shared position.
• For two individual functions, no shared functions, order additional RP72123.
• Six function diverter (T75606-LHP) has 3 individual positions and 3 shared positions.
• For three individual functions, no shared functions, order additional RP72124.
• 1/2" rough-in.
• Cartridges included.
• Standard installation allows up to 11/8" finished wall thickness.
• Thick wall installation kit RP101619 can be ordered to allow for up to 2 1/8" finished wall thickness.
• Main control utilizes thermostatic valve cartridge.
• Thermostatic wax element maintains the outlet temperature to ±3.6° F.
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 7.2 gpm @ 60 psi with R75000
• Top handle controls diverter functions.
• Bottom (2) handles control on/off and temperature.
• Field adjustable to limit handle rotation into hot water zone.
• Bottom handle 90° Maximum rotation.
• Hot/cold indicator markings.
• Three function diverter (T75506-LHP) has 2 individual positions and 1 shared position.
• For two individual functions, no shared functions, order additional RP72123.
• Six function diverter (T75606-LHP) has 3 individual positions and 3 shared positions.
• For three individual functions, no shared functions, order additional RP72124.
• 1/2" rough-in.
• Cartridges included.
• Standard installation allows up to 11/8" finished wall thickness.
• Thick wall installation kit RP101619 can be ordered to allow for up to 2 1/8" finished wall thickness.
