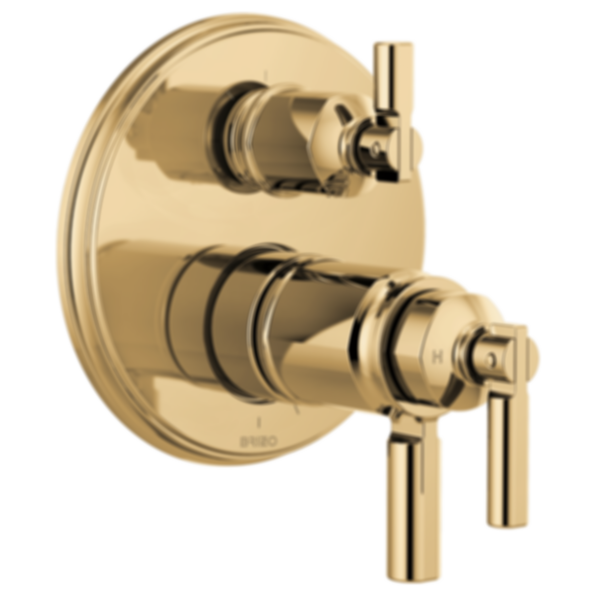

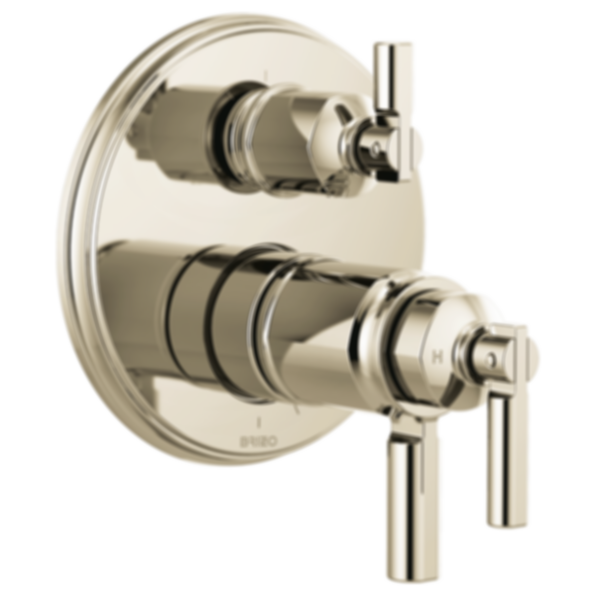

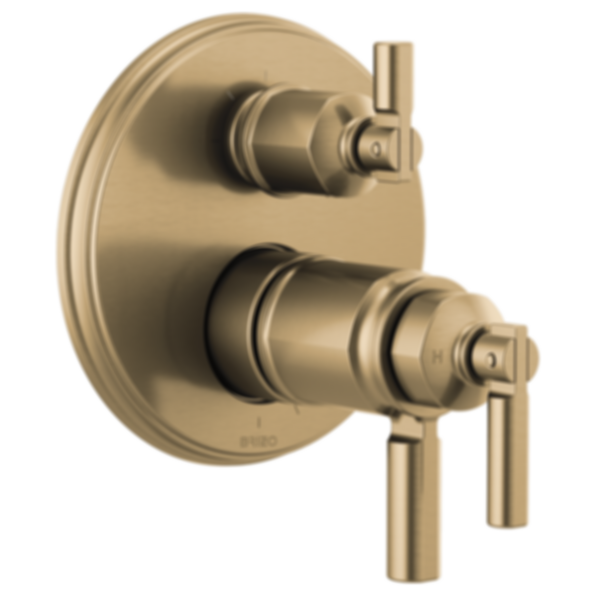

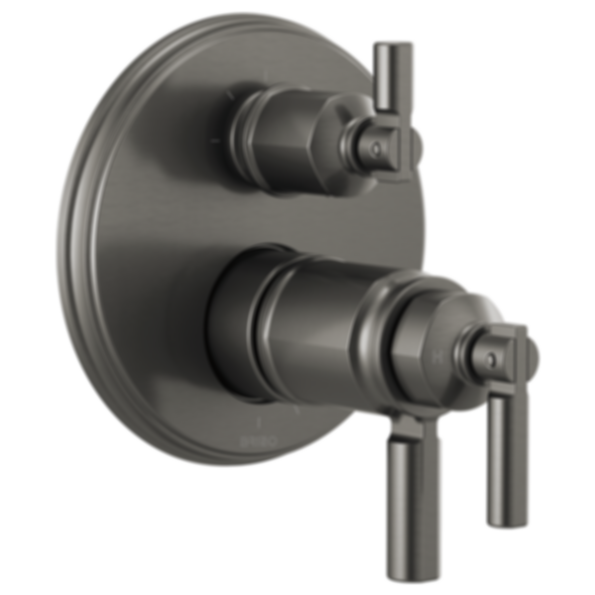

Invari® Tempassure® Thermostatic Valve With Integrated 3-Function Diverter Trim - T75576-PC
Download Files
Features:
• Main control utilizes TempAssure® thermostaticvalve cartridge.
• Thermostatic wax element maintains the outlet temperature to ±3.6° F.
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 7.2 gpm @ 60 psi with R75000
• Top handle controls diverter functions.
• Bottom (2) handles control volume and temperature.
• Field adjustable to limit temperature handle rotationinto hot water zone.
• Bottom volume handle 90° maximum rotation.
• Hot/cold indicator markings.
• Three function diverter has 2 individualpositions and 1 shared position.
• For two individual functions, no shared functions, order additional RP72123.
• 1/2" rough-in.
• Cartridges included.
• Standard installation allows up to 11/8" finished wall thickness.
• Thick wall installation kit RP90545p can be ordered to allow for up to 2 1/8" finished wall thickness.
• Main control utilizes TempAssure® thermostaticvalve cartridge.
• Thermostatic wax element maintains the outlet temperature to ±3.6° F.
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 7.2 gpm @ 60 psi with R75000
• Top handle controls diverter functions.
• Bottom (2) handles control volume and temperature.
• Field adjustable to limit temperature handle rotationinto hot water zone.
• Bottom volume handle 90° maximum rotation.
• Hot/cold indicator markings.
• Three function diverter has 2 individualpositions and 1 shared position.
• For two individual functions, no shared functions, order additional RP72123.
• 1/2" rough-in.
• Cartridges included.
• Standard installation allows up to 11/8" finished wall thickness.
• Thick wall installation kit RP90545p can be ordered to allow for up to 2 1/8" finished wall thickness.
