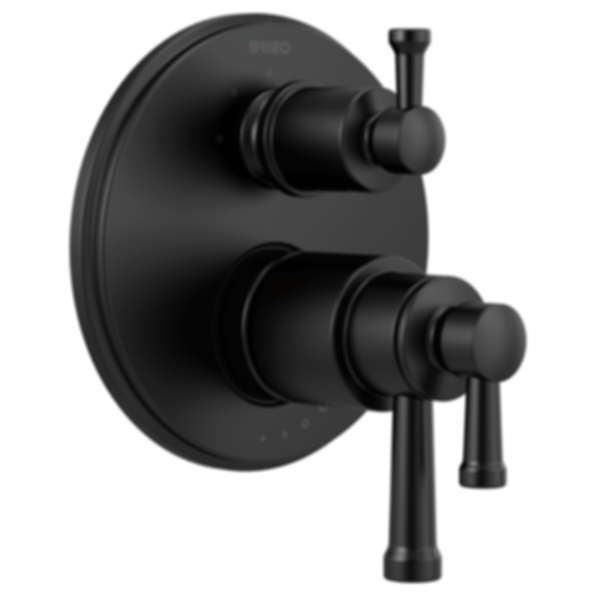

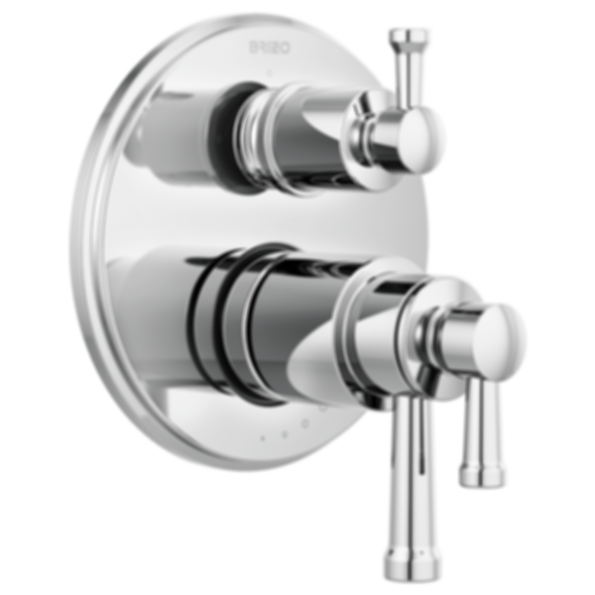

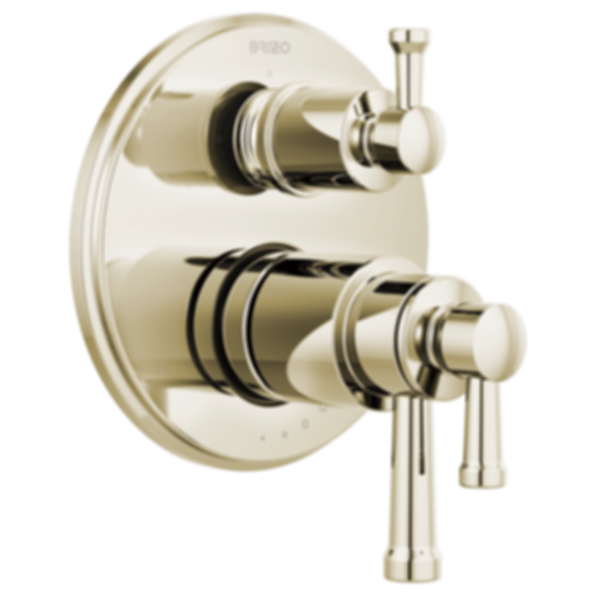

Atavis® Tempassure® Thermostatic Valve with Integrated 3- Function Diverter Trim - T75542
Download Files
Crafted exclusively for Ferguson Enterprises Inc.
Features:
• Main control utilizes thermostatic valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6° F
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 7.2 gpm @ 60 psi with R75000
• Top handle controls diverter functions
• Bottom (2) handles control on/off and temperature
• Field adjustable to limit handle rotation into hot water zone
• Bottom handle 90° Maximum rotation
• Hot/cold indicator markings
• Three function diverter (T75542-) has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter (T75642-) has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in.
• Cartridges included
• Standard installation allows up to 11/8" finished wall thickness
• Thick wall installation kit RP90545 can be ordered to allow for up to 2 1/8" finished wall thickness
Features:
• Main control utilizes thermostatic valve cartridge
• Thermostatic wax element maintains the outlet temperature to ±3.6° F
• Back-to-back installation capability
• For use with MultiChoice® Universal Integrated Shower Diverter Rough (R75000 Series)
• Max. system flow rate 7.2 gpm @ 60 psi with R75000
• Top handle controls diverter functions
• Bottom (2) handles control on/off and temperature
• Field adjustable to limit handle rotation into hot water zone
• Bottom handle 90° Maximum rotation
• Hot/cold indicator markings
• Three function diverter (T75542-) has 2 individual positions and 1 shared position
• For two individual functions, no shared functions, order additional RP72123
• Six function diverter (T75642-) has 3 individual positions and 3 shared positions
• For three individual functions, no shared functions, order additional RP72124
• 1/2" rough-in.
• Cartridges included
• Standard installation allows up to 11/8" finished wall thickness
• Thick wall installation kit RP90545 can be ordered to allow for up to 2 1/8" finished wall thickness
